Steering column lock

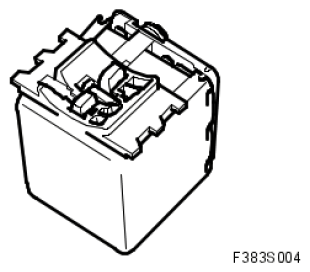

Fig 1: Identifying Steering Column Lock
G05056883Courtesy of SAAB-SCANIA OF AMERICA, INC.
STEERING COLUMN LOCK SPECIFICATIONS

+30 Pin 1
Ground Pin 2
Trigger from CIM Pin 3
Communication cable <-> CIM Pin 4
Motor, lock/unlock 12V
Motor, unlocked and secured 12V
