Microswitch, bootlid/tailgate: Removing

  1. Remove the bootlid trim. See BOOT LID TRIM .
    Fig 1: Identifying Bootlid Trim
    G05056777Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Unplug the microswitch connector.
    Fig 2: Illustrations For Steps 2-4
    G05056778Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Remove the 4 nuts securing the molding to the bootlid.
  4. Press in the clips securing the molding. Pull out the molding.
  5. Remove the catch securing the microswitch using a screwdriver in the edge of the catch.
  6. Unplug the flat pin connector to the microswitch.

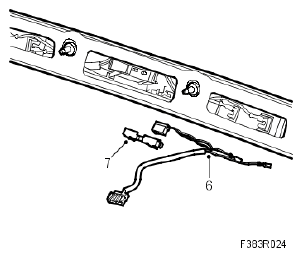

    Fig 3: Illustrations For Steps 6-7
    G05056779Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Remove the microswitch.
