Crimp J104, main harness: Notes

Location:  Approx. 190 mm from branching point front left wheel speed sensor towards TCS/ESP

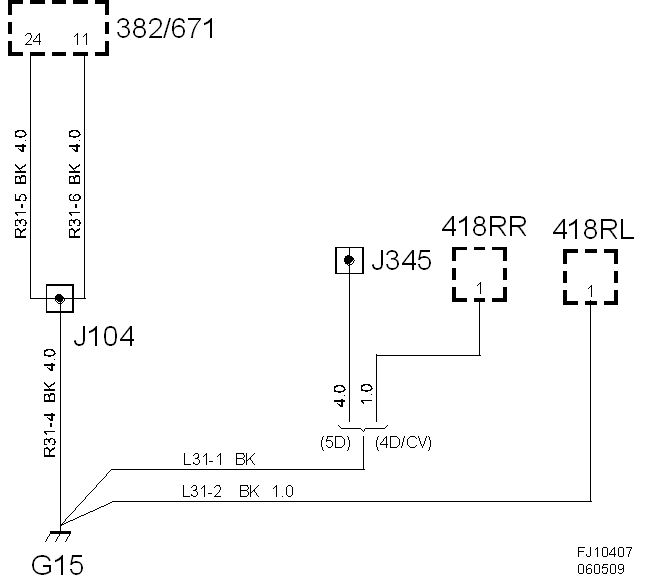

Fig 1: Crimp J104, Main Harness - Circuit Diagram
G05570525Courtesy of SAAB-SCANIA OF AMERICA, INC.
