Installation Procedure

  1. Install the NEW wheel stud into the wheel bearing hub.

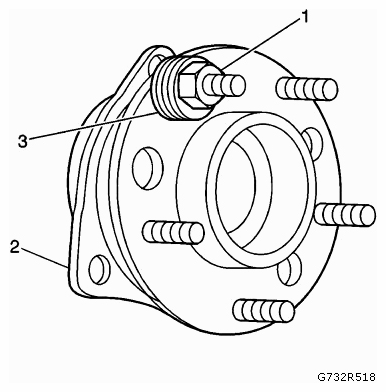

    Fig 1: Identifying Wheel Nut And Washers
    G09439609Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Add enough washers (3) in order to draw the stud into the hub.
  3. Install the wheel nut (1) with the flat side against the washers.
  4. Tighten the wheel nut (1) until the head of the wheel stud is fully seated against the back of the bearing hub flange.
  5. Remove the wheel nut (1) and the washers (3).
  6. Install the rear wheel bearing and hub. Refer to REAR WHEEL BEARING AND HUB REPLACEMENT (GNE, AWD) , REAR WHEEL BEARING AND HUB REPLACEMENT (GNE, FWD)  or REAR WHEEL BEARING AND HUB REPLACEMENT (GNC) .
  7. Install the tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  8. Lower the vehicle.
