Adjust Link Bushing Replacement

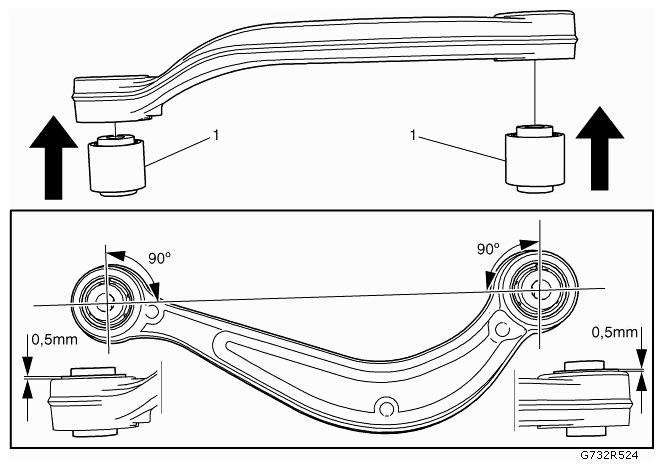

Fig 1: Identifying Bushing Component

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE . Remove the rear tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION . Remove the adjust link. Refer to ADJUST LINK REPLACEMENT (GNC) or ADJUST LINK REPLACEMENT (GNE) .
1	Adjust Link Bushing Install the bushings by pressing in the arrow direction. See mounting angle and distance in the graphic
