Home >> Saab >> 2010 >> 9-5 >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Seat Belt System >> Wiring diagram >> Seat Belt >> Notes

Seat Belt: Notes

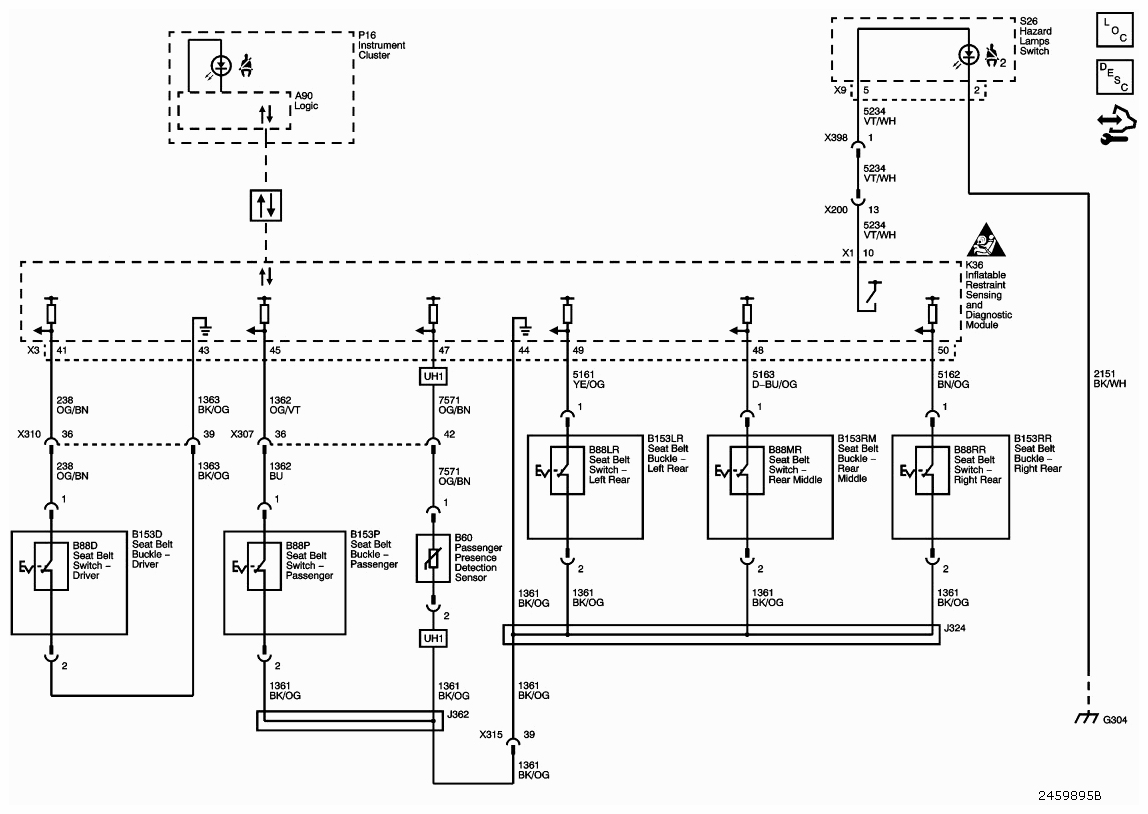

Fig 1: Seat Belt System - Wiring Diagram

G09439618

Courtesy of SAAB-SCANIA OF AMERICA, INC.
