Receiver and Dehydrator Replacement

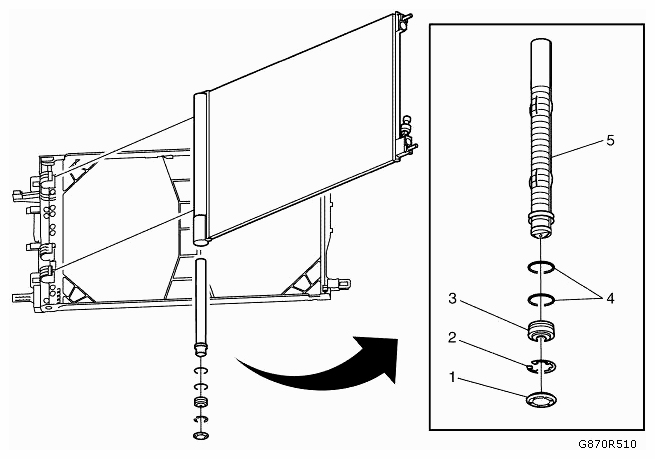

Fig 1: Identifying Receiver, Dehydrator, O-Ring And Condenser Snap-Ring

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure Remove the air conditioning condenser. Refer to, AIR CONDITIONING CONDENSER REPLACEMENT (LAU/A28NER) or AIR CONDITIONING CONDENSER REPLACEMENT (LHU/A20NFT) .
1	Condenser Cap
2	Condenser Snap-Ring Procedure Remove and discard the snap-ring.
3	Condenser Plug
4	Receiver and Dehydrator O-Ring (Qty: 2) Procedure Remove and discard the O-rings.
5	Receiver and Dehydrator
