Heater Core Tube Replacement

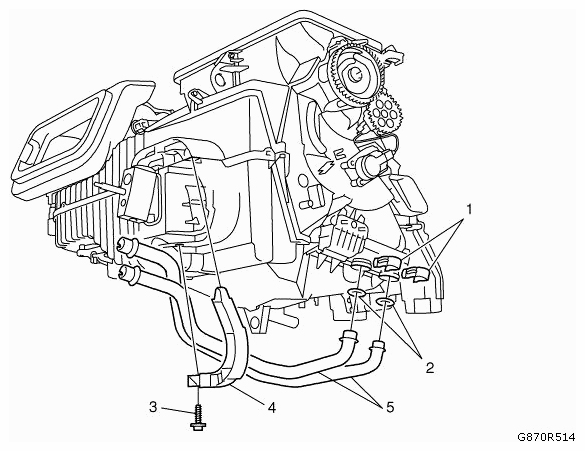

Fig 1: Identifying Heater Core Tube Clamp, Seal And Bracket Bolt

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure Remove the Heater and Air Conditioning Evaporator and Blower Module. Refer to HEATER AND AIR CONDITIONING EVAPORATOR AND BLOWER MODULE REPLACEMENT .
1	Heater Core Tube Clamp (Qty: 2)
2	Heater Core Tube Seal (Qty: 2)
3	Heater Core Tube Bracket Bolt
4	Heater Core Tube Bracket
5	Heater Core Tube Assembly
