Glow Plug Shell Replacement

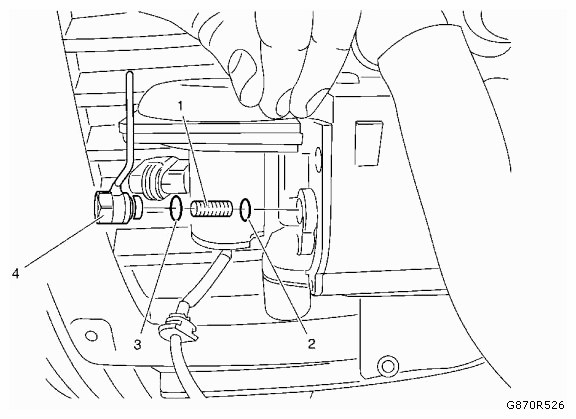

Fig 1: Identifying Glow Plug Shell, Filter And Gasket
G09439751Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
Preliminary Procedure
  1. Remove the glow plug. Refer to GLOW PLUG REPLACEMENT .
  2. Remove the engine coolant heater combustion chamber temperature sensor. Refer to ENGINE COOLANT HEATER COMBUSTION CHAMBER TEMPERATURE SENSOR REPLACEMENT .
1 Glow Plug Shell Filter
2 Glow Plug Shell Filter Gasket
3 Glow Plug Shell Gasket
4 Glow Plug Shell
