Installation Procedure

  1. Install the glow plug (1) to the park heater glow plug shell (2).

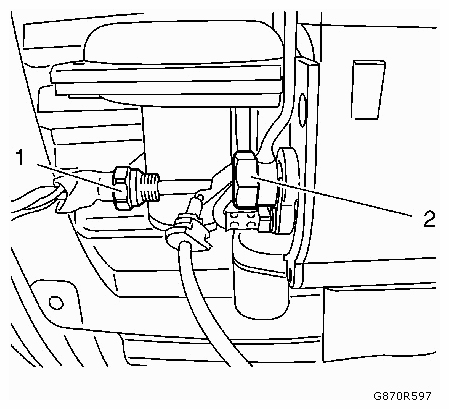

    Fig 1: Identifying Glow Plug And Shell
    G09439743Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. NOTE: When installing the glow plug.

    Install the glow plug cable pin (1) to the engine coolant wiring harness connector (2).

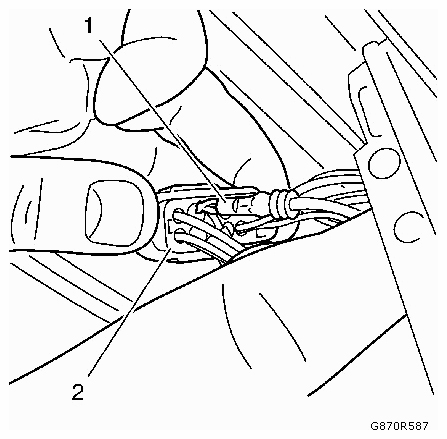

    Fig 2: Installing Glow Plug Cable Pin
    G09439744Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Install the engine coolant heater cover. Refer to ENGINE COOLANT HEATER COVER REPLACEMENT (HOUSING)  or ENGINE COOLANT HEATER COVER REPLACEMENT (HOUSING COVER) .
