Removal Procedure

  1. Remove the engine coolant heater housing. Refer to ENGINE COOLANT HEATER COVER REPLACEMENT (HOUSING)  or ENGINE COOLANT HEATER COVER REPLACEMENT (HOUSING COVER) .
  2. Remove the 4 fasteners (1) from the engine coolant heater control (2).

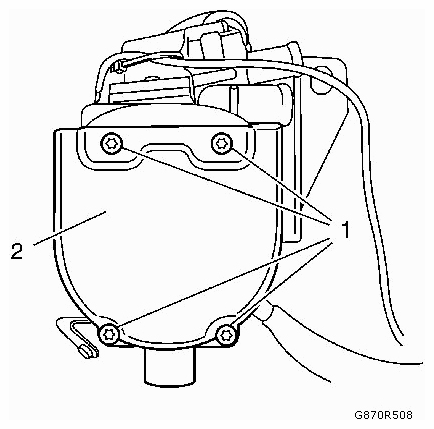

    Fig 1: Identifying Engine Coolant Heater Control And Fasteners
    G09439717Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Disconnect with caution the electrical connector (1) from the engine coolant heater control (2).

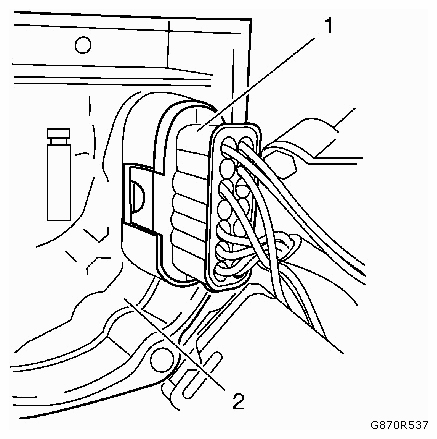

    Fig 2: Identifying Engine Coolant Heater Control And Electrical Connector
    G09439718Courtesy of SAAB-SCANIA OF AMERICA, INC.
