Installation Procedure

Connect the electrical connector (1) to the engine coolant heater control unit (2).

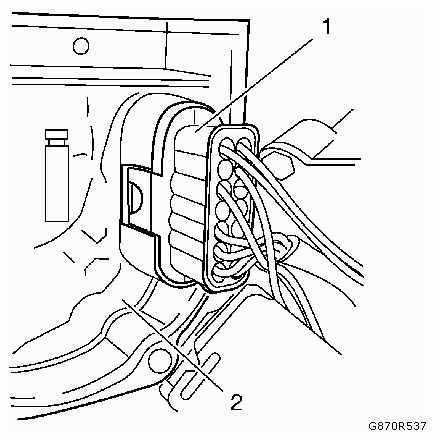

Fig 1: Identifying Engine Coolant Heater Control And Electrical Connector
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Refer to FASTENER CAUTION .
Install the 4 fasteners (1) to the engine coolant heater control (2).

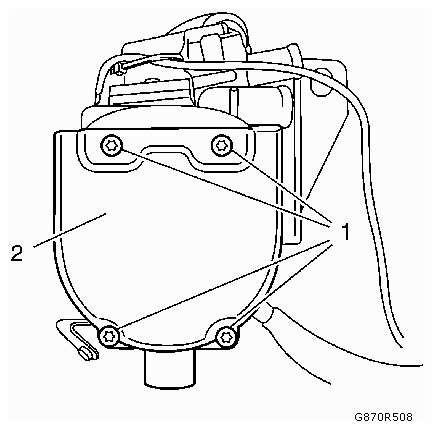

Fig 2: Identifying Engine Coolant Heater Control And Fasteners
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Install the engine coolant heater housing. Refer to ENGINE COOLANT HEATER COVER REPLACEMENT (HOUSING) or ENGINE COOLANT HEATER COVER REPLACEMENT (HOUSING COVER) .
