Removal Procedure

  1. Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION .
  2. Remove the instrument panel compartment. Refer to GLOVE COMPARTMENT, REPLACEMENT .
  3. Remove the both engine coolant heater control module fasteners (1).
    Fig 1: Identifying Engine Coolant Heater Control Module Fasteners
    G09439709Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Disconnect the electrical connector (1) from the engine coolant control module (2).

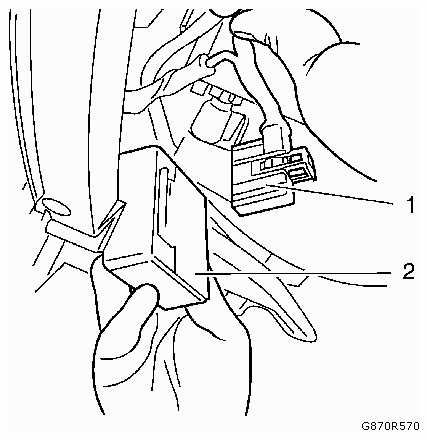

    Fig 2: Identifying Engine Coolant Control Module And Electrical Connector
    G09439710Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Remove the engine coolant control module.
