Installation Procedure

  1. Install the engine coolant control module to the instrument panel tie bar anchor plate.
  2. Connect the electrical connector (1) to the engine coolant control module (2).

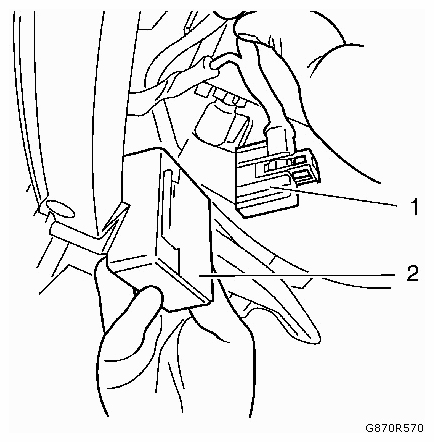

    Fig 1: Identifying Engine Coolant Control Module And Electrical Connector
    G09439711Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Install the instrument panel compartment. Refer to GLOVE COMPARTMENT, REPLACEMENT .
  4. Connect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION .
