Installation Procedure

  1. Refer to FASTENER CAUTION .

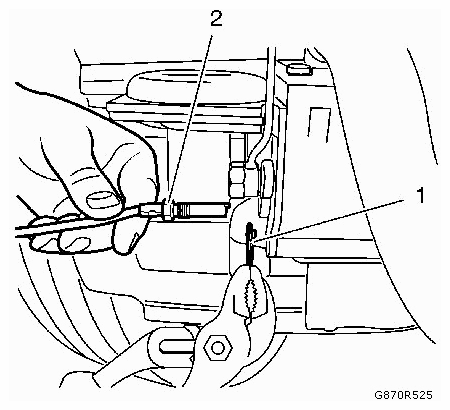

    Install the glow plug shell bracket (1) and the engine coolant heater chamber temperature sensor (2).

    Fig 1: Installing Engine Coolant Heater Chamber Temperature Sensor
    G09439754Courtesy of SAAB-SCANIA OF AMERICA, INC.

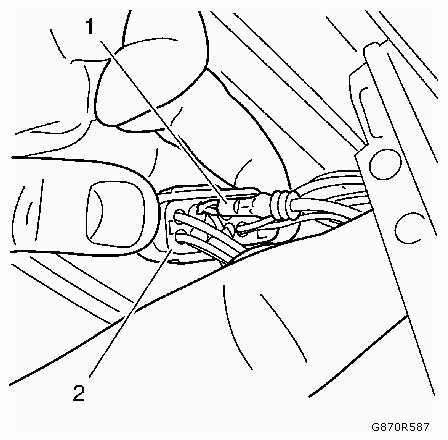

  2. Install the engine coolant heater chamber temperature sensor cable pin (1) to the engine coolant wiring harness (2).
    Fig 2: Installing Engine Coolant Heater Chamber Temperature Sensor Cable Pin
    G09439755Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Install the engine coolant heater cover. Refer to ENGINE COOLANT HEATER COVER REPLACEMENT (HOUSING)  or ENGINE COOLANT HEATER COVER REPLACEMENT (HOUSING COVER) .
