Body Air Outlet Deflector Replacement

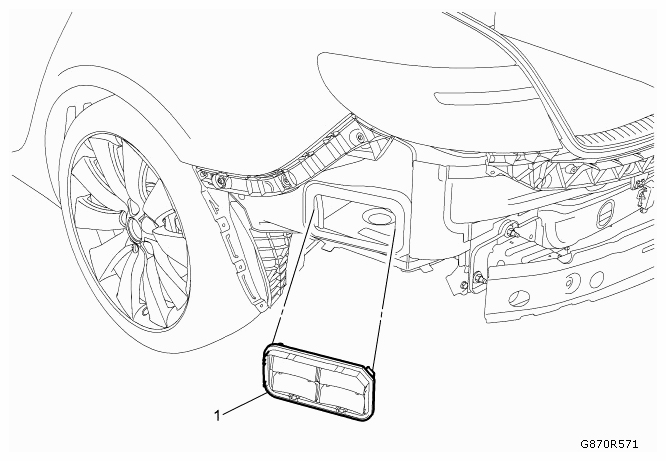

Fig 1: Identifying Body Air Outlet Deflector

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove the rear bumper fascia. Refer to REAR BUMPER FASCIA REPLACEMENT .
1	Body Air Outlet Deflector NOTE: Use a small flat-bladed tool to release the body air outlet deflector.
