Blower Motor Replacement

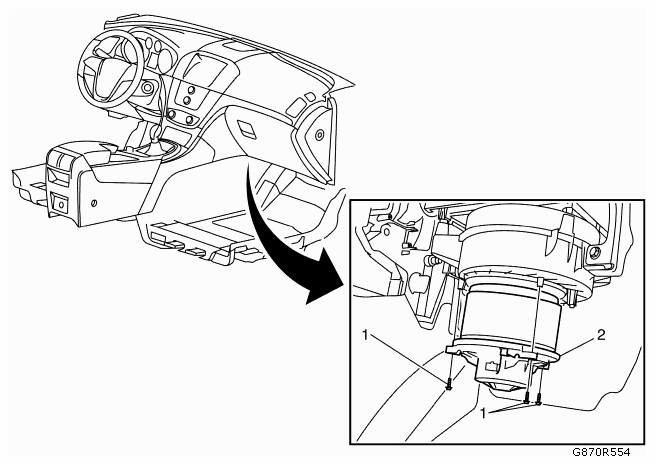

Fig 1: Identifying Blower Motor And Fastener
G09439686Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
Preliminary Procedure
  1. Remove the instrument panel compartment. Refer to GLOVE COMPARTMENT, REPLACEMENT .
  2. Remove the floor air outlet duct. Refer to FLOOR AIR OUTLET DUCT REPLACEMENT - RIGHT SIDE .
  3. Disconnect the blower motor electrical connector.
1 Blower Motor Fastener (Qty: 3)
2 Blower Motor
