Auxiliary Heater Core Replacement

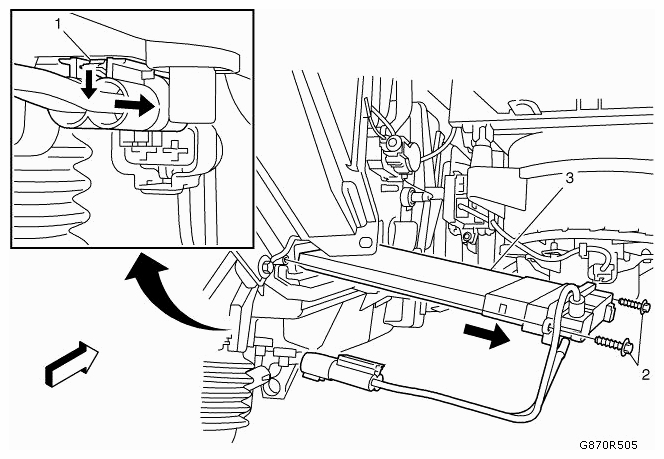

Fig 1: Pulling Out Auxiliary Heater Core

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure Remove the instrument panel. Refer to INSTRUMENT PANEL ASSEMBLY REPLACEMENT .
1	Auxiliary Heater Core Retainer Procedure Use a screw driver to release the snap feature and move the connector from the bracket. Disconnect the electrical connector.
2	Auxiliary Heater Core Fastener (Qty: 2) Refer to FASTENER CAUTION .
3	Auxiliary Heater Core Procedure Pull out the auxiliary heater core.
