Installation Procedure

  1. Install the air inlet valve and inside air valve control cam. Refer to AIR INLET VALVE AND INSIDE AIR VALVE CONTROL CAM REPLACEMENT .
  2. Install the air inlet valve actuator. Refer to AIR INLET VALVE ACTUATOR REPLACEMENT (RIGHT HAND DRIVE) or AIR INLET VALVE ACTUATOR REPLACEMENT (LEFT HAND DRIVE) .
  3. Refer to FASTENER CAUTION .

    Install the air inlet housing (2) to the heater and air conditioning evaporator and blower module (1).

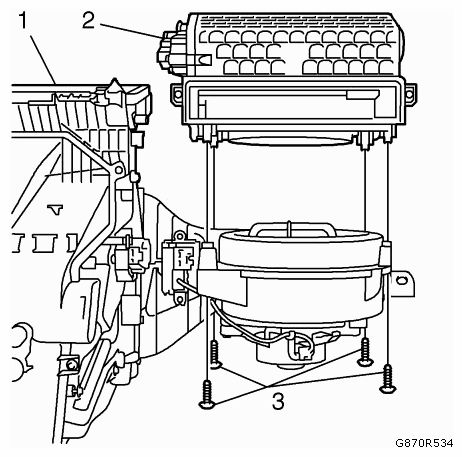

    Fig 1: Identifying Air Inlet Housing, Conditioning Evaporator, Blower Module And Bolts
    G09439685Courtesy of SAAB-SCANIA OF AMERICA, INC.
    • Connect the electrical connectors.
    • Install the 4 inlet housing bolts (3) and tighten to 2.5 Nm (23 lb in).
  4. Install the heater and air conditioning evaporator and the blower module. Refer to HEATER AND AIR CONDITIONING EVAPORATOR AND BLOWER MODULE REPLACEMENT .
