Effects of Peeling Forces

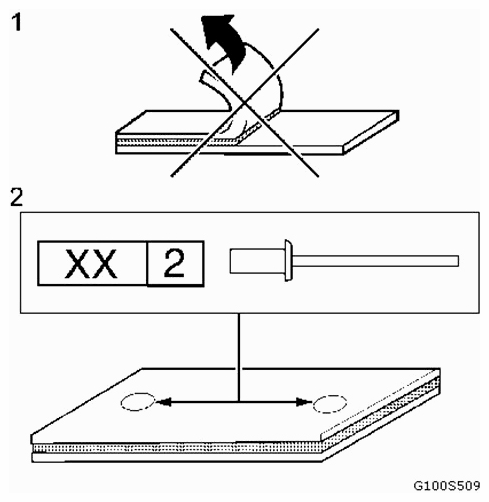

- Depiction of typical unwanted, linear separation of the adhesive layer (peeling).
- Remedies:
- Fixing with resistance spot-welds or rivets with a spacing of 150 mm (6 in).
- Use of waterproof steel rivets, if there is access to the body flange.
| Rivet Length | Rivet Diameter | Clamping Area (sum total of sheet thicknesses to be joined together) | Part No. | Catalogue No. |
|---|---|---|---|---|
| 8 mm (0.3 in) | 4 mm (0.2 in) | 1.5-3.0 mm (0.06-0.1 in) | 93184033 | 1 84 983 |
| 9.5 mm (0.4 in) | 4 mm (0.2 in) | 3.0-5.0 mm (0.1-0.2 in) | 93184034 | 1 84 984 |
| 12 mm (0.5 in) | 4 mm (0.2 in) | 6.5-8.5 mm (0.25-0.33 in) | 93174636 | 1 88 890 |
