Throttle Body Assembly Replacement

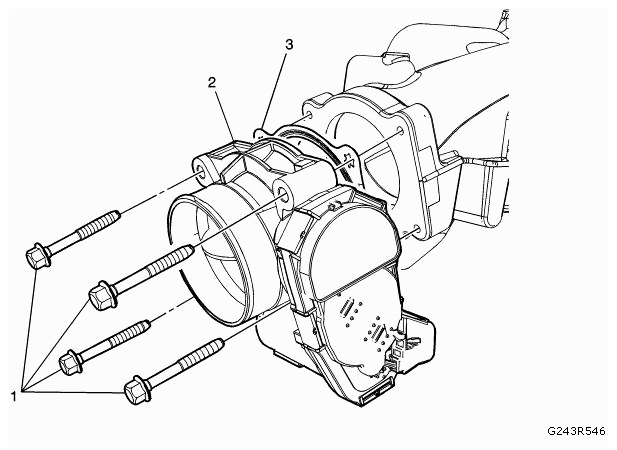

Fig 1: Identifying Throttle Body Assembly And Mounting Bolts

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure Turn OFF the ignition. Remove the engine sight shield. Remove the charge air cooler outlet air tube. Refer to CHARGE AIR COOLER OUTLET HOSE REPLACEMENT (LAU/A28NER) .
1	Throttle Body Module Fastener (Qty: 4) Refer to FASTENER CAUTION . Tighten 10 Nm (89 lb in)
2	Throttle Body Module Procedure Disconnect the wiring harness connector.
3	Throttle Body Module Gasket
