Drive Belt Replacement

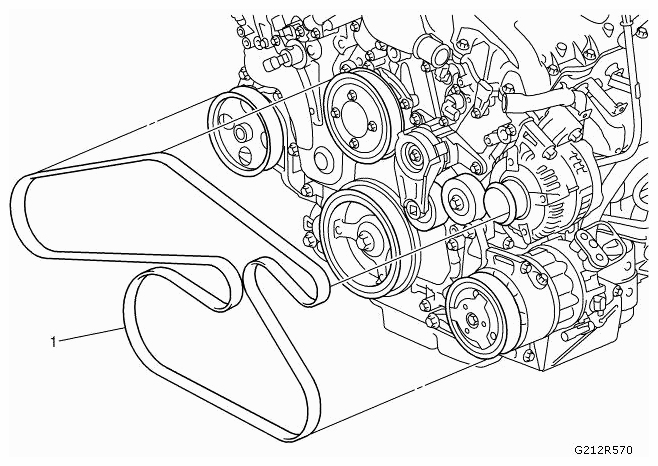

Fig 1: Identifying Drive Belt
G09438353Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
Preliminary Procedure
  1. Remove the engine mount. Refer to ENGINE MOUNT BRACKET REPLACEMENT - RIGHT SIDE .
  2. Rotate the drive belt tensioner clockwise to release the drive belt tension.
  3. Slide the drive belt off of the belt idler pulley.
  4. Slowly release the drive belt tensioner.
1 Drive Belt
