Engine Coolant Level Indicator Module Replacement

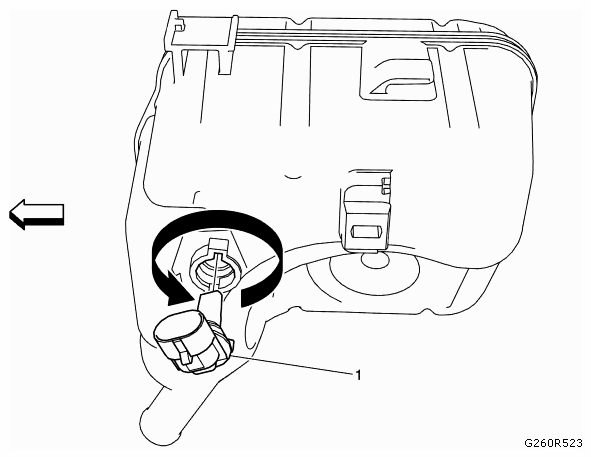

Fig 1: Turning Engine Coolant Level Indicator Module
G09435048Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
Preliminary Procedure
  1. Drain the cooling system. Refer to COOLING SYSTEM DRAINING AND FILLING (LAU/A28NER)  or COOLING SYSTEM DRAINING AND FILLING (LHU/A20NFT) .
  2. Remove the cooling system surge tank. Refer to RADIATOR SURGE TANK REPLACEMENT (LAU/A28NER)  .
1 Engine Coolant Level Indicator Module
