Lighting And Signaling Systems: Wiring diagram: Indicators: Notes

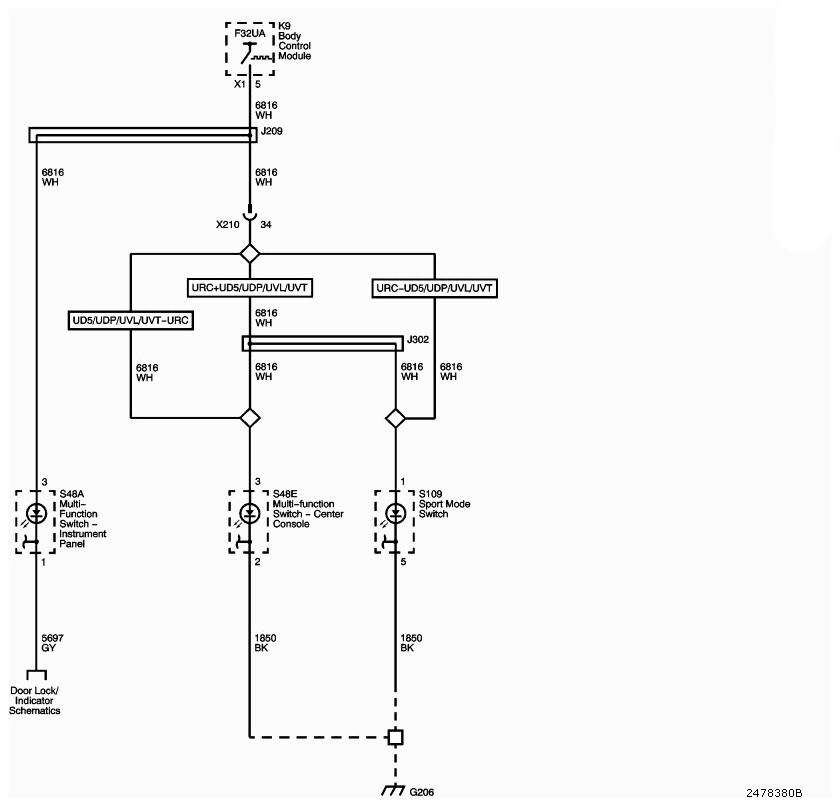

Fig 1: Indicators - Wiring Diagram

G09435236

Courtesy of SAAB-SCANIA OF AMERICA, INC.
