Reading Lamp Bulb Replacement

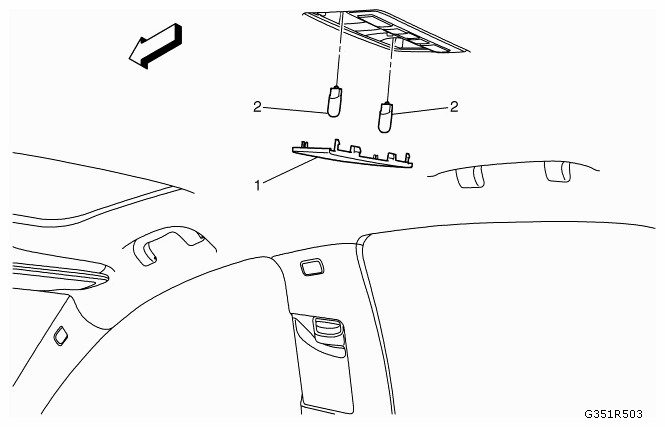

Fig 1: Identifying Reading Lamp Bulb, Dome And Reading Lamp Lens

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
1	Dome and Reading Lamp Lens NOTE: Carefully use a flat-bladed tool, and release the tabs retaining the dome and reading lamp lens to the reading lamp.
2	Reading Lamp Bulb Refer to AVOID TOUCHING THE BULB CAUTION NOTE: Service the bulb, as needed.
