Instrument Panel Compartment Lamp Replacement

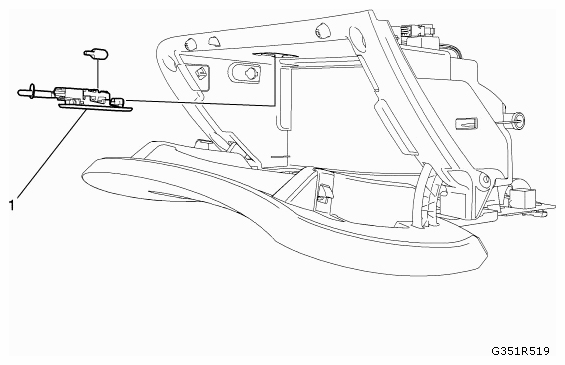

Fig 1: Identifying Instrument Panel Compartment Lamp
G09435173Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
Preliminary Procedure
Remove Instrument Panel Compartment. Refer to GLOVE COMPARTMENT, REPLACEMENT
1 Instrument Panel Compartment Lamp
Procedure
  1. Release and pull off the instrument panel compartment lamp.
  2. Disconnect the electrical connector.
NOTE: Carefully use a flat bladed tool, and release the compartment lamp.
