Horn Replacement

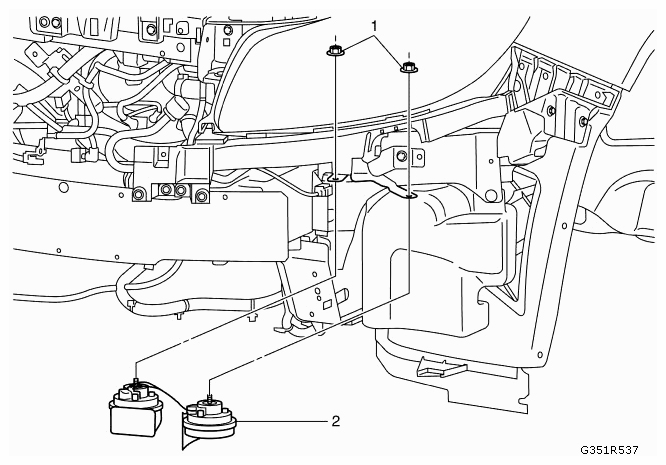

Fig 1: Identifying Horn And Fastener

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia. Refer to FRONT BUMPER FASCIA REPLACEMENT .
1	Horn Fastener (Qty: 2) Refer to FASTENER CAUTION . Tighten 17 Nm (13 lb ft)
2	Horn Procedure Disconnect the electrical connectors.
