Headlamp Replacement

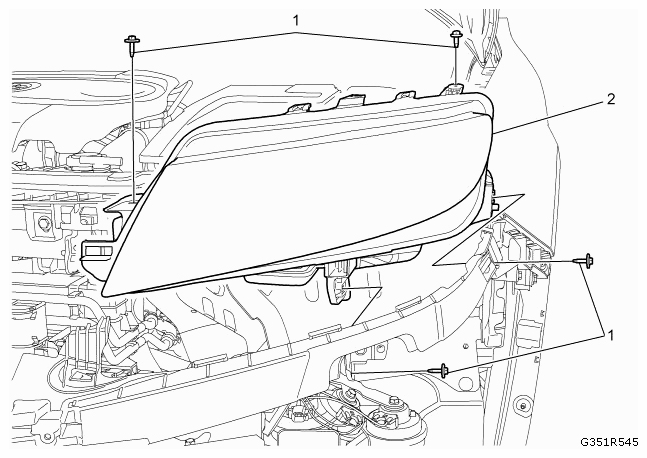

Fig 1: Identifying Headlamp And Fastener

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Refer to HALOGEN BULB WARNING . WARNING: The high intensity discharge system produces high voltage and current. In order to reduce the risk of severe shocks and burns, the battery negative cable must be disconnected any time service work is being performed on or around the high intensity discharge system. WARNING: The high intensity discharge system produces high voltage and current. To reduce the risk of severe shocks and burns: Never open the high intensity discharge system ballast or the arc tube assembly starter. Never probe between the high intensity discharge system ballast output connector and the arc tube assembly. Preliminary Procedure Remove the front bumper fascia. Refer to FRONT BUMPER FASCIA REPLACEMENT . Remove the front bumper fascia support. Refer to FRONT BUMPER FASCIA SUPPORT REPLACEMENT (LEFT SIDE) or FRONT BUMPER FASCIA SUPPORT REPLACEMENT (RIGHT SIDE) .
1	Headlamp Fastener (Qty: 4) Refer to FASTENER CAUTION . Tighten 2.5 Nm (22 lb in)
2	Headlamp Procedure Pull up and forward in order to release the headlamp. Pull the headlamp assembly forward far enough to access the electrical connection. Disconnect the electrical connectors. Remove the headlamp assembly. Aim the headlamps after installation. Refer to HEADLAMP AIMING (BASE) or HEADLAMP AIMING (CHECK AND ADJUST) .
