Hazard Warning Switch Replacement

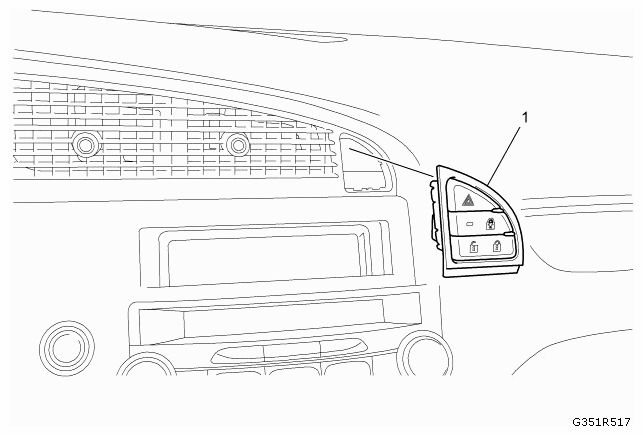

Fig 1: Identifying Hazard Warning Switch
G09435164Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
1 Hazard Warning Switch
Procedure
  1. Using a small flat-bladed tool, release the switch.
  2. Disconnect the electrical connector.
