Front Fog Lamp Bulb Replacement

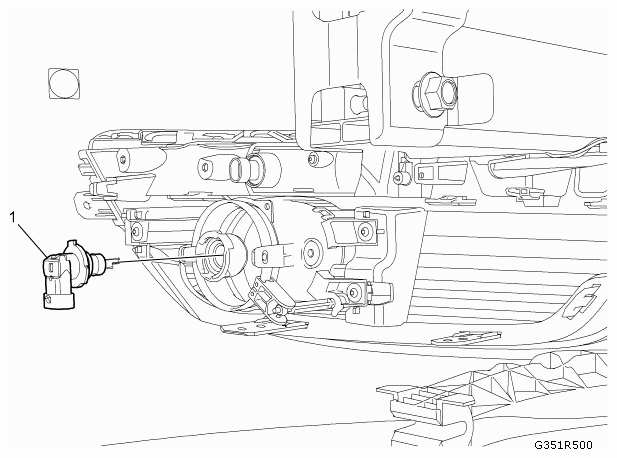

Fig 1: Identifying Front Fog Lamp Bulb
G09435203Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
Preliminary Procedure
  1. Remove the front compartment splash shield on the side the front fog lamp bulb will be serviced. Refer to FRONT COMPARTMENT SPLASH SHIELD REPLACEMENT .
  2. Disconnect the front fog lamp bulb electrical connector.
1 Front Fog Lamp Bulb
Refer to HALOGEN BULB WARNING .
NOTE: Rotate the bulb socket a quarter turn counter-clockwise in order to remove the bulb from the fog lamp projector.
