Home >> Saab >> 2010 >> 9-5 >> Repair and Diagnosis >> Electrical >> Charging Systems >> Charging And Starting System >> Wiring diagram >> Starting >> Notes

Charging And Starting System: Wiring diagram: Starting: Notes

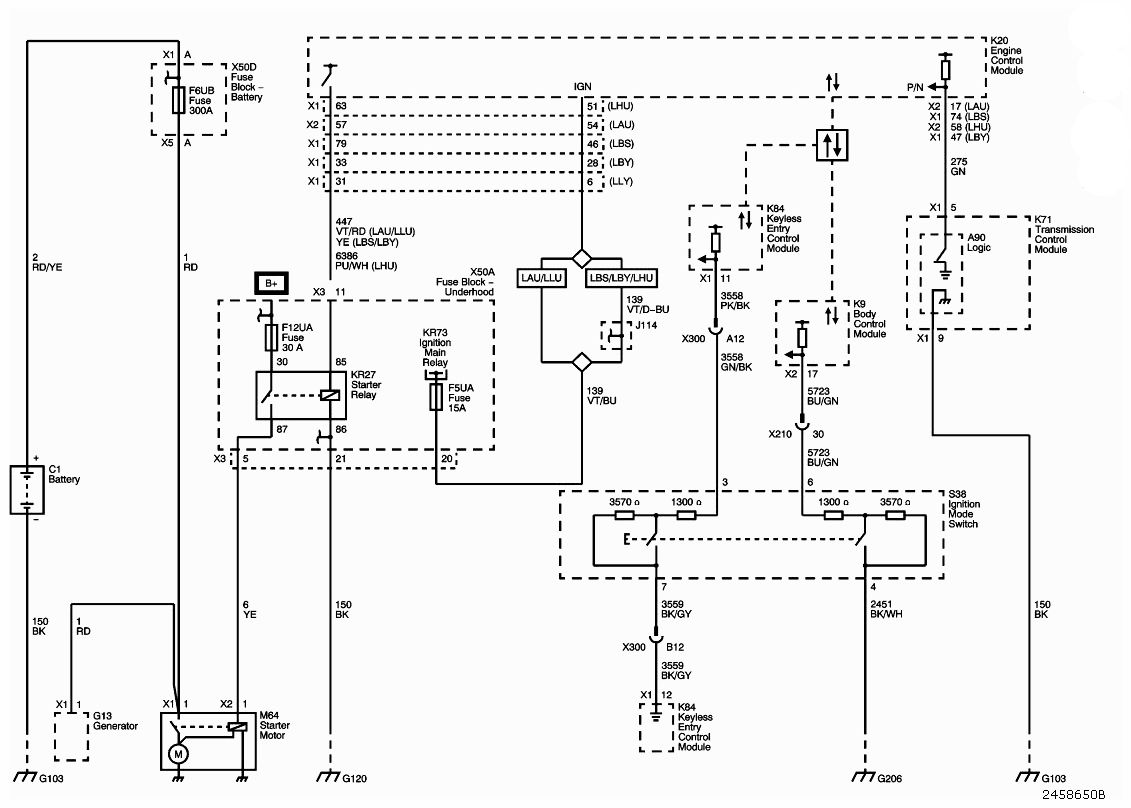

Fig 1: Starting - Wiring Diagram

G09435157

Courtesy of SAAB-SCANIA OF AMERICA, INC.
