Generator Replacement (Diesel)

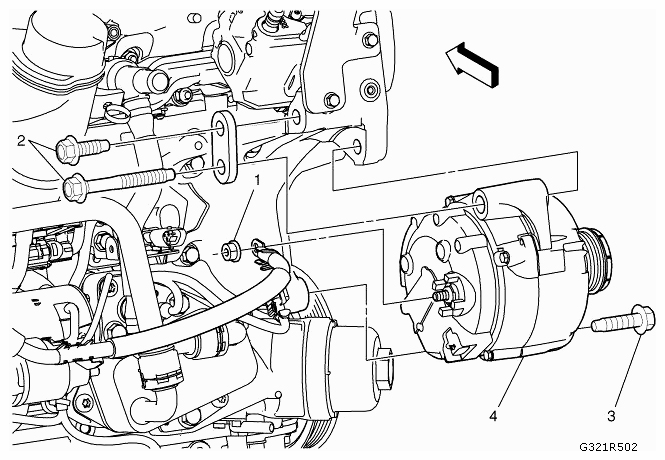

Fig 1: Identifying Generator Related Components

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure Disconnect the battery negative cable. Refer to BATTERY NEGATIVE CABLE REPLACEMENT (GASOLINE) . Remove the drive belt. Refer to DRIVE BELT REPLACEMENT .
1	Generator Wiring Harness Fastener Refer to FASTENER CAUTION . Procedure Disconnect the electrical connector. Tighten 12.5 Nm (9 lb ft)
2	Generator Support Fastener (Qty: 2) Tighten 60 Nm (44 lb ft)
3	Generator Fastener Tighten 60 Nm (44 lb ft)
4	Generator
