Battery Replacement

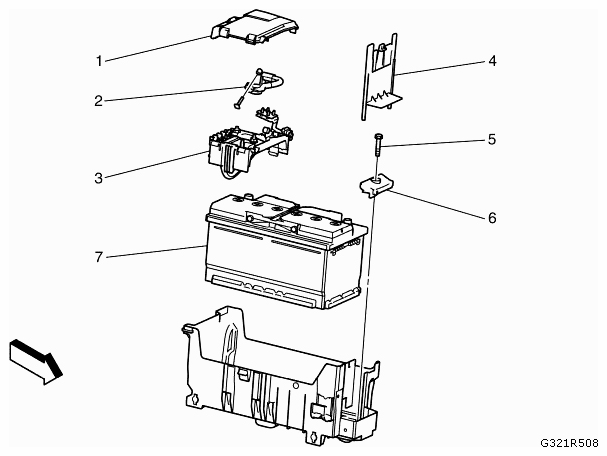

| Callout | Component Name |
|---|---|
| Refer to BATTERY DISCONNECT WARNING
. Preliminary Procedure Remove the battery negative terminal connection. Refer to BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION . |
|
| 1 | Battery Fuse Cover Plate |
| 2 | Battery Positive Cable Refer to FASTENER CAUTION . Tighten 4.5 Nm (39.8 lb in) |
| 3 | Battery Fuse Assembly |
| 4 | Engine Diagnosis Module Retainer Plate Procedure Release the engine diagnosis module retainer plate and lift upwards. |
| 5 | Battery Retainer Fastener Tighten 10 Nm (89 lb in) |
| 6 | Battery Retainer Bracket Procedure Release the battery retainer plate and lift upwards. |
| 7 | Battery |
