Battery Positive Cable Replacement

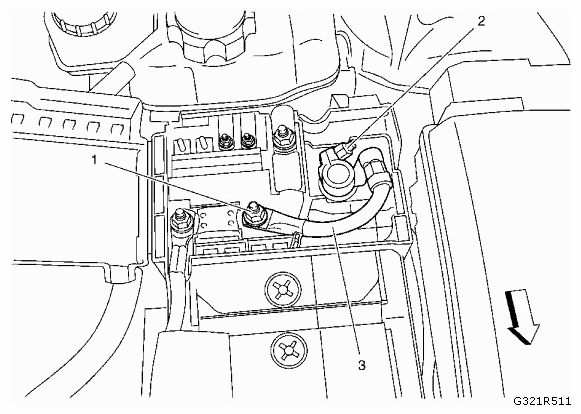

Fig 1: Identifying Battery Positive Cable And Fastener

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure Disconnect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION .
1	Battery Positive Cable Fastener Refer to FASTENER CAUTION . Tighten 20 Nm (15 lb ft)
2	Battery Positive Cable Fastener Tighten 4.5 Nm (39.8 lb in)
3	Battery Positive Cable NOTE: Refer to CONTROL MODULE REFERENCES for programming and set up information.
