Module Power, Ground, Serial Data, and Controls (A45 or AUN): Notes

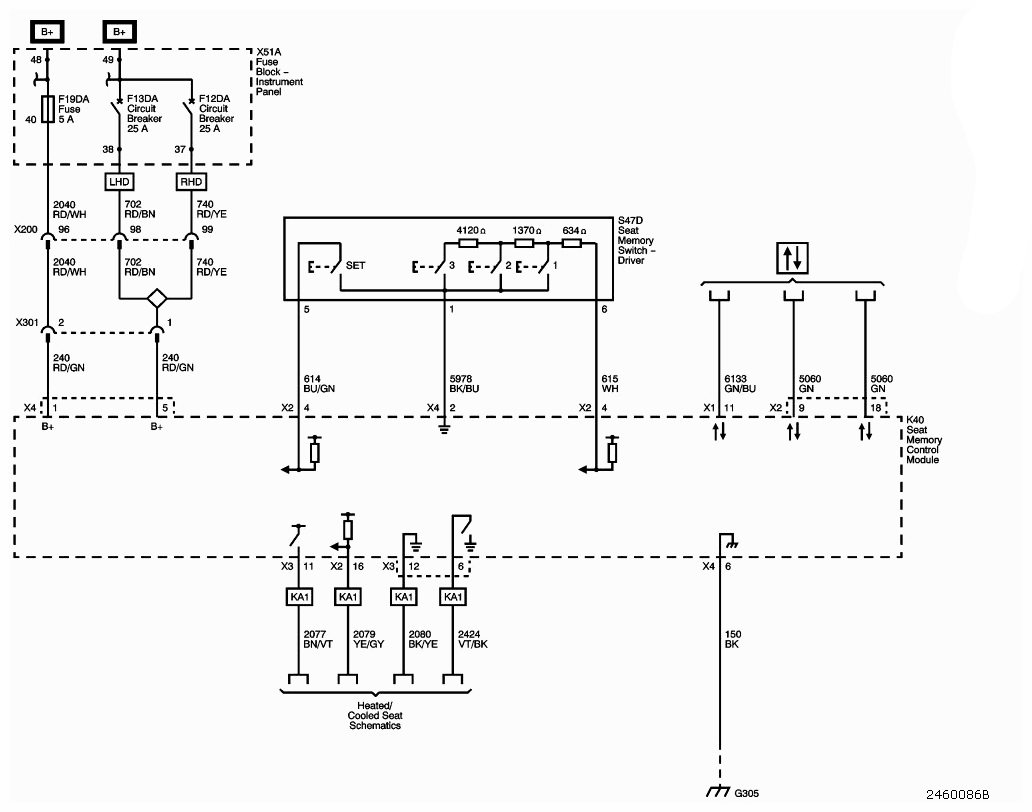

Fig 1: Module Power, Ground, Serial Data And Controls (A45/AUN) - Circuit Diagram

G09438147

Courtesy of SAAB-SCANIA OF AMERICA, INC.
