Front Floor Console Compartment Replacement

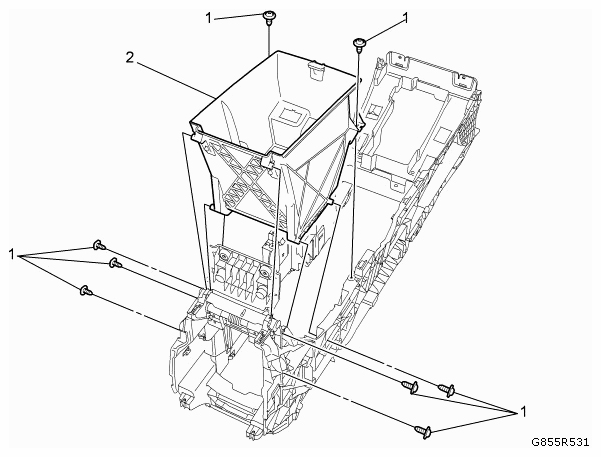

Fig 1: Identifying Front Floor Console Compartment And Fastener

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove front floor side cover. Refer to FRONT FLOOR CONSOLE SIDE COVER REPLACEMENT .
1	Front Floor Console Compartment Fastener (Qty: 8) Refer to FASTENER CAUTION .
2	Front Floor Console Compartment Disconnect all the electrical connectors, transfer any necessary parts.
