Installation Procedure

Clean and prepare the attaching surfaces (1) for welding.

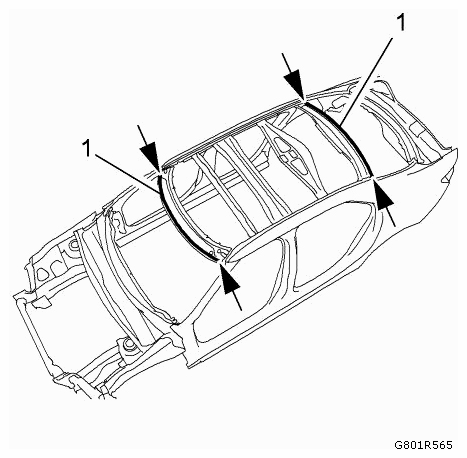

Fig 1: Locating Attaching Surfaces Welding Area
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Apply one-part windshield urethane adhesive as noted from the original roof outer panel.
Apply bodywork structural adhesive on the roof outer panel channel (1).

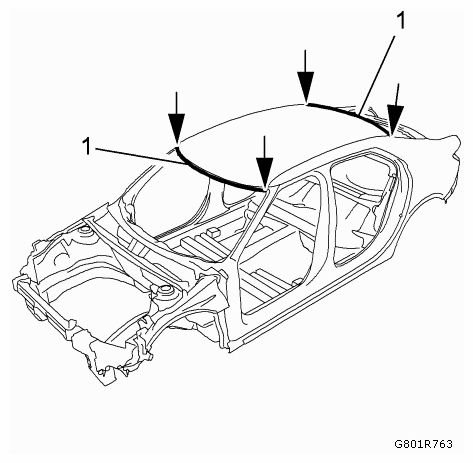

Fig 2: Applying Windshield Urethane Adhesive
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Position the roof outer panel on the vehicle.
Verify the fit of the roof outer panel.
Clamp the roof outer panel into position.
Put weights (1) on both sides of the roof outer panel with BO-49383 flexible weights.

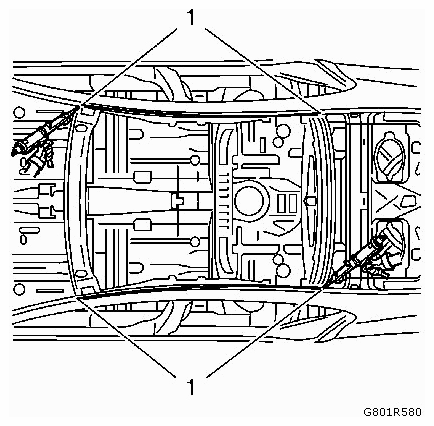

Fig 3: Identifying Bodywork Structural Adhesive Applying Area On Roof Outer Panel Channel
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Spread surplus bodywork structural adhesive (1) on the roof outer panel channel as a seam sealant and corrosion protection with a spatula or flat paintbrush. Sand down the bodywork structural adhesive after it has cured. To smooth out the surface on the roof outer panel channel, use a liquid filler.

Fig 4: Putting Weights On Roof Outer Panel
Courtesy of SAAB-SCANIA OF AMERICA, INC.
NOTE: Refer to WELDED, BRAZED, AND RIVETED JOINT SPECIFICATIONS .

Spot weld (1) the roof outer panel accordingly.

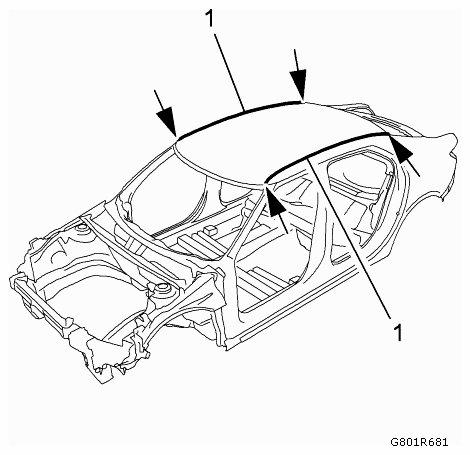

Fig 5: Locating Spot Weld Area On Roof Outer Panel
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Apply the sealers and anti-corrosion materials to the repair area, as necessary. Refer to ANTI-CORROSION TREATMENT AND REPAIR (BASE) or ANTI-CORROSION TREATMENT AND REPAIR (CORROSION PROTECTION) .
Install the headlining trim panel. Refer to HEADLINING TRIM PANEL REPLACEMENT (WITHOUT SUNROOF) or HEADLINING TRIM PANEL REPLACEMENT (WITH SUNROOF) .
Connect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION .
Enable the SIR system. Refer to SIR DISABLING AND ENABLING .
