Installation Procedure

  1. Cut the replacement quarter outer panel section in corresponding locations to fit the original panel. The sectioning joint should be trimmed to allow min. 1 times the metal thickness at the sectioning joint.

  2. NOTE: Pre-spot operation: The number of spots is specified in the documentation from the welding equipment manufacturer.

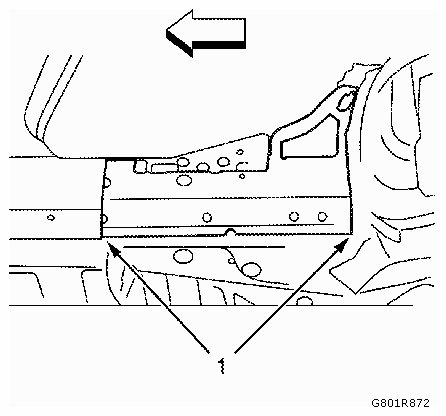

    Prepare inner rocker panel (1) with reinforcement (PSO).

    Fig 1: Identifying Inner Rocker Panel With Reinforcement (PSO)
    G09437802Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Prepare new quarter outer panel in the area (1).

    7 slots (5x18 mm/0.2x0.7 in)

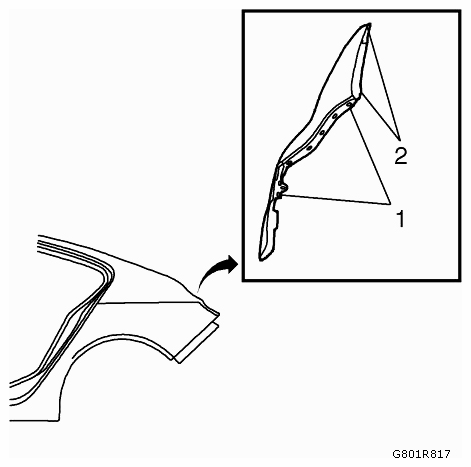

    Fig 2: Identifying Quarter Outer Panel Area
    G09437803Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Prepare new quarter outer panel in the area (2).

    6 slots (5x18 mm/0.2x0.7 in)

  5. Position the new body side outer panel on the vehicle.
    Fig 3: Identifying Quarter Outer Panel Area
    G09437804Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Verify the fit of the new body side outer panel.
  7. Clamp the new body side outer panel into position.
  8. Drill fastening holes (1) for waterproof rivets.

    4 holes (4 mm/0.16 in)

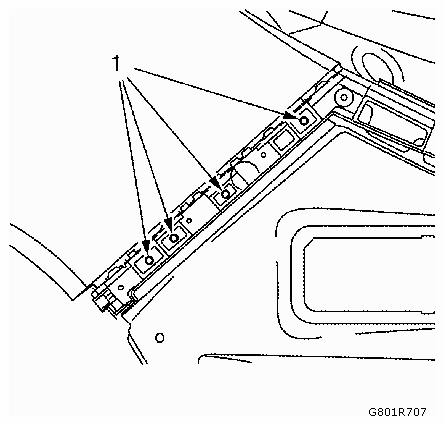

    Fig 4: Positioning Body Side Outer Panel On Vehicle
    G09437805Courtesy of SAAB-SCANIA OF AMERICA, INC.
  9. Remove new quarter outer panel.
  10. Apply bodywork repair through structural adhesive to body. Refer to STRUCTURAL ADHESIVE BODY REPAIRS .

    Adhesive on Sound Deadener (1)

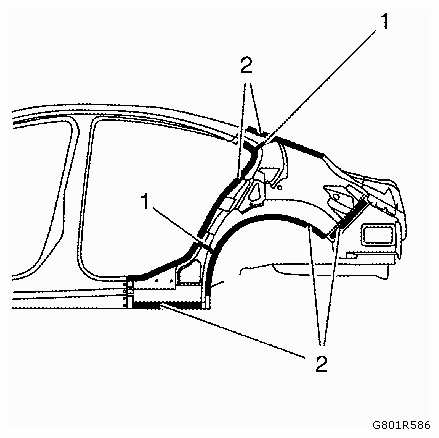

    Fig 5: Identifying Fastening Holes And Waterproof Rivets
    G09437806Courtesy of SAAB-SCANIA OF AMERICA, INC.
  11. Position the quarter outer panel on the vehicle.

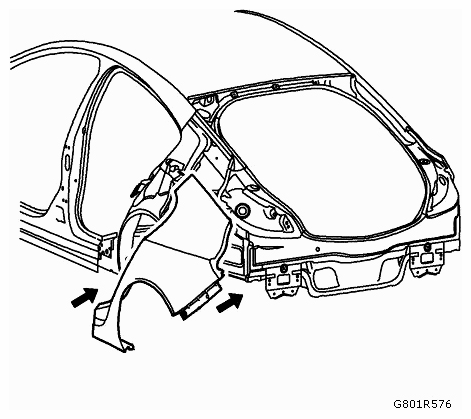

    Fig 6: Identifying Adhesive Applying Area On Sound Deadener
    G09437807Courtesy of SAAB-SCANIA OF AMERICA, INC.
  12. Verify the fit of the roof outer panel.
  13. Clamp the quarter outer panel into position.
  14. Spot weld (1) the quarter outer panel accordingly.

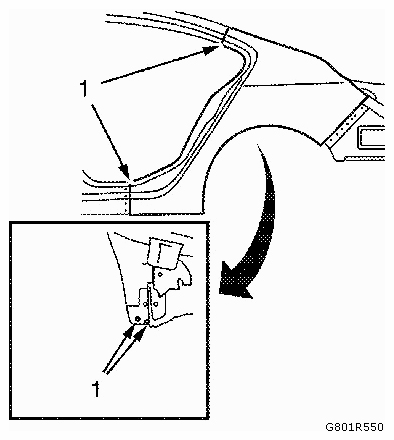

    Fig 7: Positioning Body Side Outer Panel On Vehicle
    G09437808Courtesy of SAAB-SCANIA OF AMERICA, INC.
  15. Spot weld (SPP) the quarter outer panel (2) accordingly.

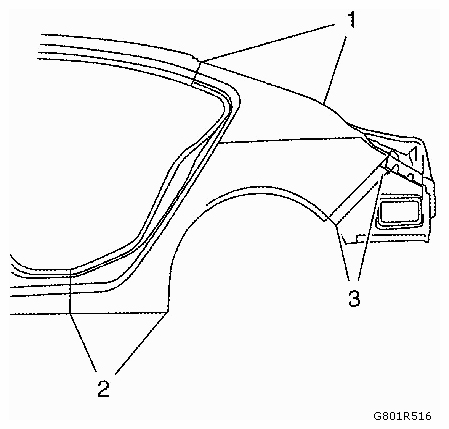

    Fig 8: Identifying Spot Weld On Quarter Outer Panel
    G09437809Courtesy of SAAB-SCANIA OF AMERICA, INC.
  16. MIG-braze (1) the quarter outer panel.
  17. Rivet (3) on the quarter outer panel.
  18. MIG-braze (1) the quarter outer panel.

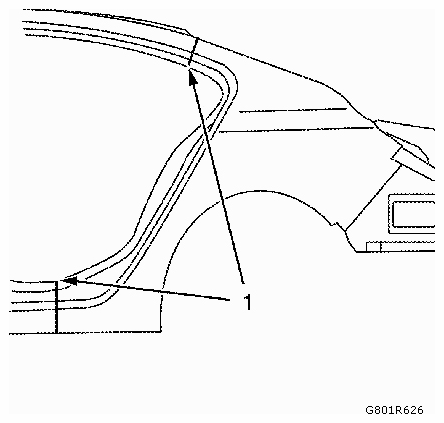

    Fig 9: Identifying Spot Weld (SPP) On Quarter Outer Panel
    G09437810Courtesy of SAAB-SCANIA OF AMERICA, INC.
  19. MIG-braze (1) the quarter outer panel.

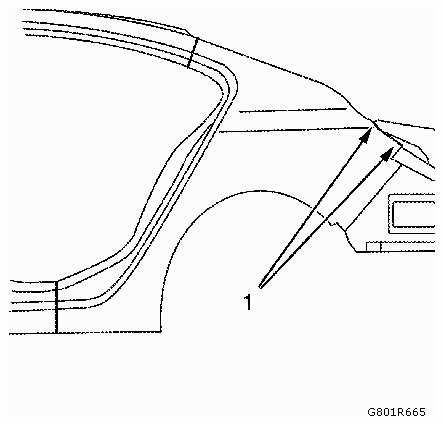

    Fig 10: Identifying MIG-Braze On Quarter Outer Panel
    G09437811Courtesy of SAAB-SCANIA OF AMERICA, INC.
  20. Grind MIG brazed seams.
  21. Pre-flange wheel housing.

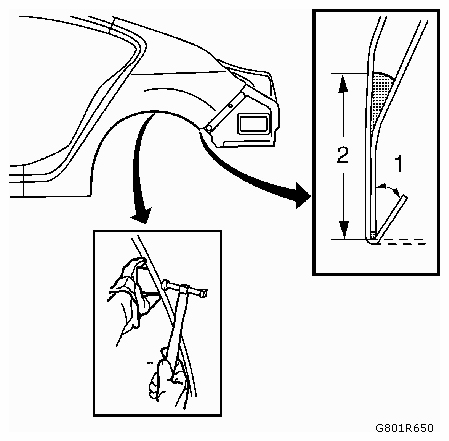

    Using a suitable hammer, bend over the flanged edge 45° (1), at the same time holding a small mallet or block against it. Use structural adhesive in the area (2).

    Fig 11: Bending Flanged Edge Using Tool
    G09437812Courtesy of SAAB-SCANIA OF AMERICA, INC.
  22. Bend the wheel arch.

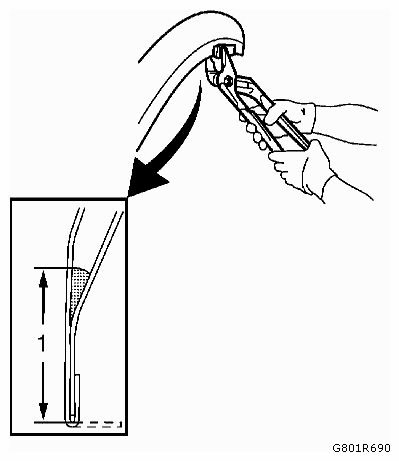

    Fig 12: Bending Wheel Arch
    G09437813Courtesy of SAAB-SCANIA OF AMERICA, INC.
    1. 22.1. Apply excess adhesive as a seam seal and corrosion protection using a spatula or flat paintbrush. Use structural adhesive in area (1).
    2. 22.2. Apply the sealers and anti-corrosion materials to the repair area, as necessary. Refer to ANTI-CORROSION TREATMENT AND REPAIR (BASE) or ANTI-CORROSION TREATMENT AND REPAIR (CORROSION PROTECTION) .
  23. Install all related panels and components.
    1. 23.1. Install the rear side door. Refer to REAR SIDE DOOR REPLACEMENT .
    2. 23.2. Install the rear side door weatherstrip - body side. Refer to REAR SIDE DOOR WEATHERSTRIP REPLACEMENT .
    3. 23.3. Install the rear compartment floor panel carpet. Refer to REAR COMPARTMENT FLOOR PANEL CARPET REPLACEMENT .
    4. 23.4. Install the rear bumper fascia. Refer to REAR BUMPER FASCIA REPLACEMENT .
  24. Connect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION .
  25. Enable the SIR system. Refer to SIR DISABLING AND ENABLING .
