Installation Procedure

Clean and prepare the attaching surfaces for welding.

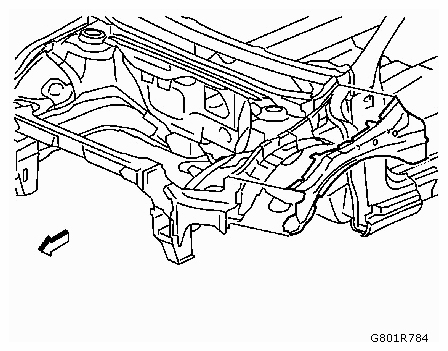

Fig 1: Identifying Attaching Surfaces For Welding
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Apply bodywork repair through structural adhesive to body (1). Refer to STRUCTURAL ADHESIVE BODY REPAIRS .
Position the front compartment upper side rail on the vehicle.

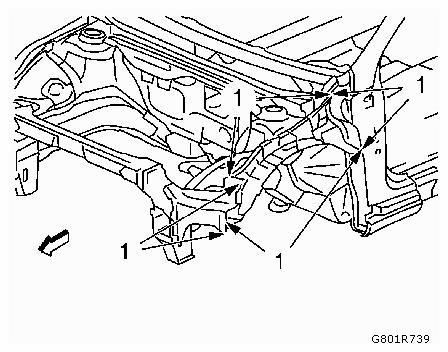

Fig 2: Positioning Front Compartment Upper Side Rail On Vehicle
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Verify the fit of the front compartment upper side rail.
Clamp the front compartment upper side rail into position.
NOTE: Refer to WELDED, BRAZED, AND RIVETED JOINT SPECIFICATIONS .

Spot weld the front compartment upper side rail (1) accordingly.

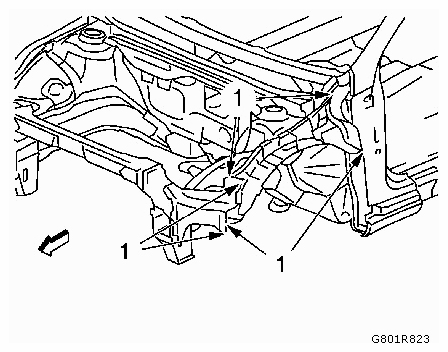

Fig 3: Identifying Spot Weld Area On Front Compartment Upper Side Rail
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Apply the sealers and anti-corrosion materials to the repair area, as necessary. Refer to ANTI-CORROSION TREATMENT AND REPAIR (BASE) or ANTI-CORROSION TREATMENT AND REPAIR (CORROSION PROTECTION) .
Install the front fender. Refer to FRONT FENDER REPLACEMENT .
Connect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION .
Enable the SIR system. Refer to SIR DISABLING AND ENABLING .
