Installation Procedure

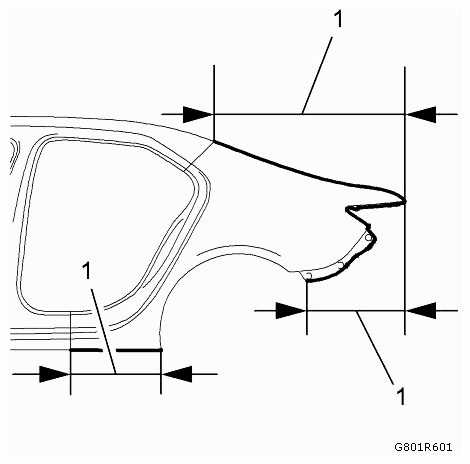

Cut the replacement body side outer panel section in corresponding locations to fit the original panel. The sectioning joint should be trimmed to allow min. 1 times the metal thickness at the sectioning joint.
NOTE: Pre-spot operation. The number of spots is specified in the documentation from the welding equipment manufacturer.

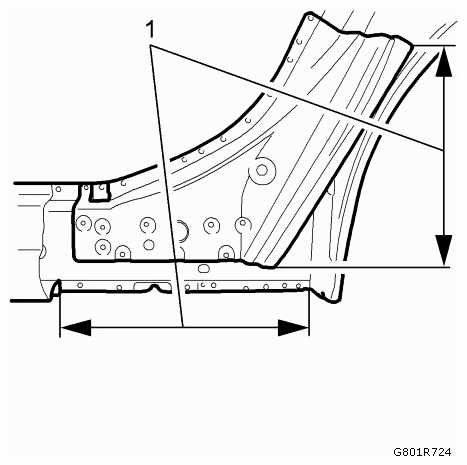

Prepare inner rocker panel (1) with reinforcement (PSO).

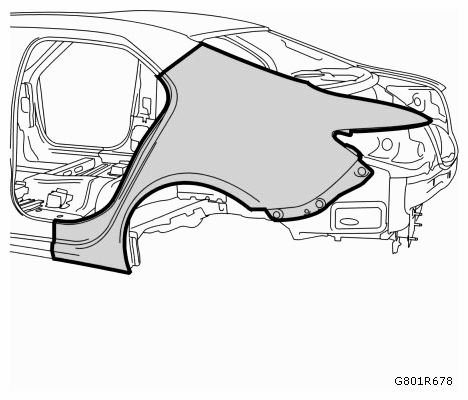

Fig 1: Positioning Body Side Outer Panel On Vehicle
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Position the new body side outer panel on the vehicle.

Fig 2: Identifying Spot Weld Area On Body Side Outer Panel
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Verify the fit of the new body side outer panel.
Remove new quarter outer panel.
Apply bodywork repair through structural adhesive to body (2). Refer to STRUCTURAL ADHESIVE BODY REPAIRS .
Adhesive on Sound Deadener (1)

Apply glue (3) to the inside of the reinforcement plate.

Fig 3: Identifying Spot Weld (SPP) Area On Body Side Outer Panel
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Apply 1K-Adhesive on the sound deadener (1). Refer to CHEMICAL PRODUCTS .
Position the new body side outer panel on the vehicle.

Fig 4: Identifying MIG-Braze Applying Area On Body Side Outer Panel
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Verify the fit of the new body side outer panel.
Clamp the new body side outer panel into position.
NOTE: Refer to WELDED, BRAZED, AND RIVETED JOINT SPECIFICATIONS .

Spot weld (1) the body side outer panel accordingly.

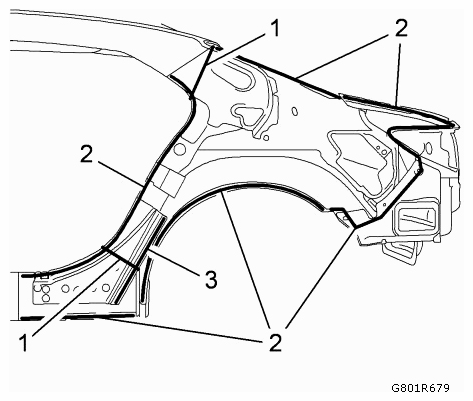

Fig 5: Identifying Adhesive Applying Area
Courtesy of SAAB-SCANIA OF AMERICA, INC.
NOTE: Refer to WELDED, BRAZED, AND RIVETED JOINT SPECIFICATIONS .

Spot weld (SPP) the body side outer panel (1) accordingly.

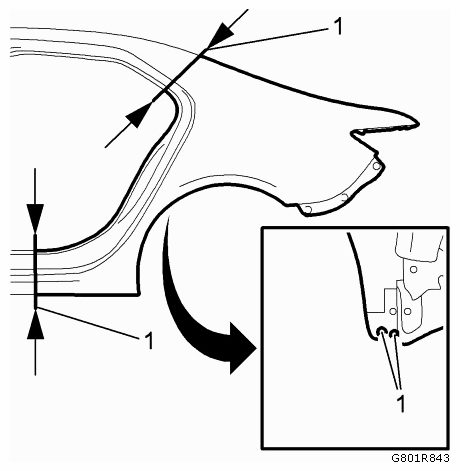

Fig 6: Identifying Spot Weld (SPP) Applying Area On Body Side Outer Panel
Courtesy of SAAB-SCANIA OF AMERICA, INC.
MIG-braze (1) the body side outer panel.

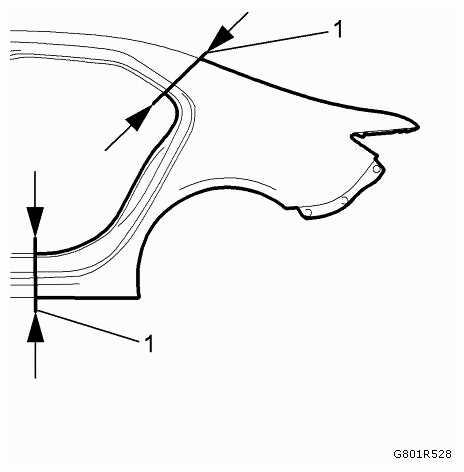

Fig 7: Identifying MIG-Braze Applying Area On Body Side Outer Panel
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Pre-flange wheel housing.
Using a suitable hammer, bend over the flanged edge 45° (1), at the same time holding a small mallet or block against it. Use structural adhesive in the area (2).

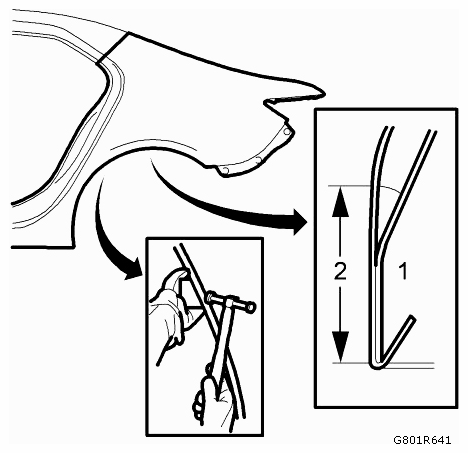

Fig 8: Bending Flanged Edge Using Tool
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Bend the wheel arch.
Apply excess adhesive as a seam seal and corrosion protection using a spatula or flat paintbrush. Use structural adhesive in area (1).

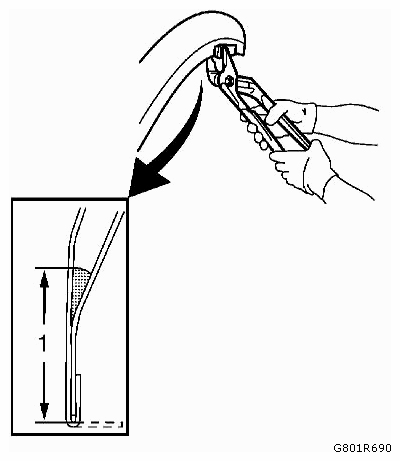

Fig 9: Bending Wheel Arch
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Apply the sealers and anti-corrosion materials to the repair area, as necessary. Refer to ANTI-CORROSION TREATMENT AND REPAIR (BASE) or ANTI-CORROSION TREATMENT AND REPAIR (CORROSION PROTECTION) .
Install all related panels and components.
- Install the rear side door. Refer to REAR SIDE DOOR REPLACEMENT .
- Install the rear side door weatherstrip - body side. Refer to REAR SIDE DOOR WEATHERSTRIP REPLACEMENT .
- Install the rear compartment floor panel carpet. Refer to REAR COMPARTMENT FLOOR PANEL CARPET REPLACEMENT .
- Install the rear window. Refer to REAR WINDOW 4D, REPLACE
- Install the rear compartment lid. Refer to REAR COMPARTMENT LID REPLACEMENT
- Install the rear compartment lid weatherstrip. Refer to REAR COMPARTMENT LID WEATHERSTRIP REPLACEMENT .
- Install the rear bumper fascia. Refer to REAR BUMPER FASCIA REPLACEMENT .
Connect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION .
Enable the SIR system. Refer to SIR DISABLING AND ENABLING .
