Passive Entry System
>>
Notes
Passive Entry System: Notes

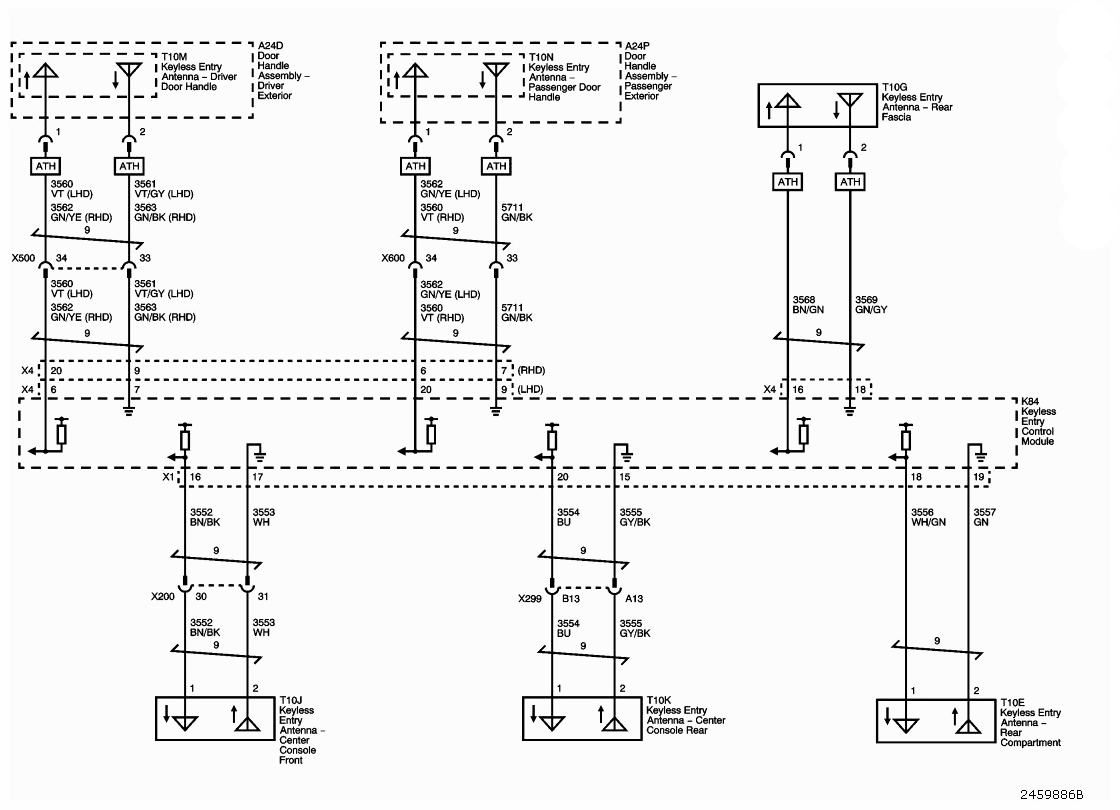

Fig 1: Passive Entry System - Wiring Diagram
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
