Windshield Wiper Motor Replacement

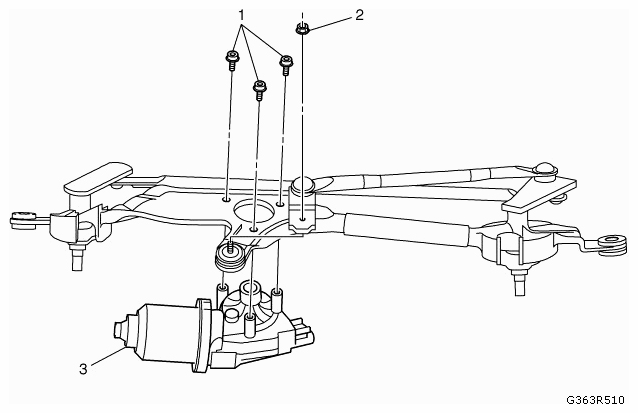

Fig 1: Identifying Windshield Wiper Motor And Crank Arm Fastener

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure Remove the plenum water deflector. Refer to PLENUM WATER DEFLECTOR REPLACEMENT . Remove the windshield wiper system module. Refer to WINDSHIELD WIPER SYSTEM MODULE REPLACEMENT .
1	Windshield Wiper Motor Fastener (Qty: 3) Refer to FASTENER CAUTION . Tighten 4.5 Nm (40 lb in)
2	Wiper Motor Crank Arm Fastener
3	Windshield Wiper Motor NOTE: Use the BO-6626 puller to separate the transmission arm from the wiper motor crank arm. Special Tools BO-6626 Wiper Arm Puller For equivalent regional tools, refer to SPECIAL TOOLS .
