Windshield Washer Solvent Level Sensor Replacement

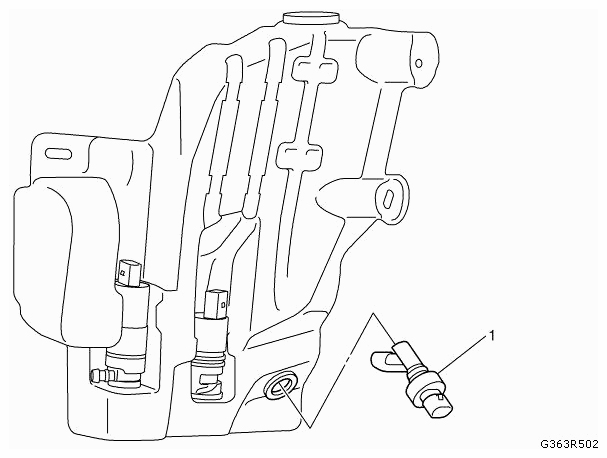

Fig 1: Identifying Windshield Washer Solvent Level Sensor

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure Remove the front wheelhouse front liner. Refer to FRONT WHEELHOUSE FRONT LINER REPLACEMENT .
1	Windshield Washer Solvent Level Sensor Procedure Disconnect the windshield washer solvent level sensor electrical connector. Drain the windshield washer solvent container into a clean suitable container. Pull the windshield washer solvent level sensor out of the windshield washer solvent container. Using a small flat-bladed tool, remove the windshield washer solvent level sensor seal from the windshield washer solvent container and inspect the seal, replace if damaged.

Callout

Component Name

Preliminary Procedure
Remove the front wheelhouse front liner. Refer to FRONT WHEELHOUSE FRONT LINER REPLACEMENT .

Windshield Washer Solvent Level Sensor
Procedure

Disconnect the windshield washer solvent level sensor electrical connector.
Drain the windshield washer solvent container into a clean suitable container.
Pull the windshield washer solvent level sensor out of the windshield washer solvent container.
Using a small flat-bladed tool, remove the windshield washer solvent level sensor seal from the windshield washer solvent container and inspect the seal, replace if damaged.
