Plenum Water Deflector Support Replacement

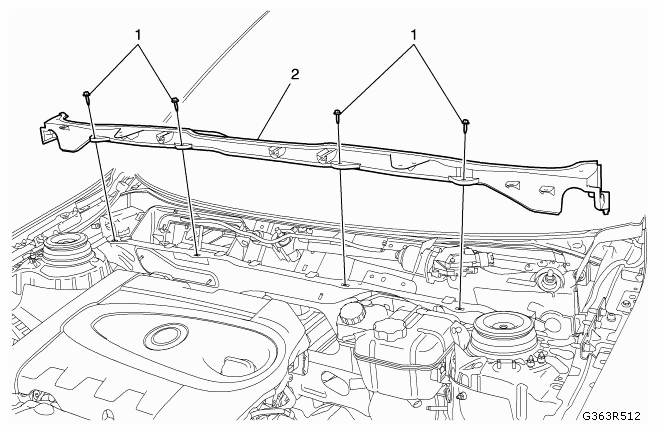

Fig 1: Identifying Plenum Water Deflector Support And Fastener

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove the plenum water deflector. Refer to PLENUM WATER DEFLECTOR REPLACEMENT .
1	Plenum Water Deflector Support Fastener (Qty: 4) Refer to FASTENER CAUTION .
2	Plenum Water Deflector Support Procedure  Release the left and right electrical wiring seal. Remove the 2 clips on the wiring harness from the Deflector.
