Plenum Water Deflector Side Support Replacement

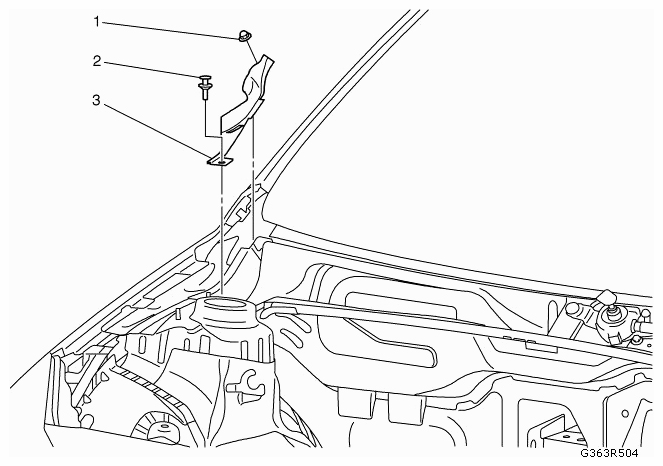

Fig 1: Identifying Plenum Water Deflector Side Support, Retainer And Fastener

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove the plenum water deflector. Refer to PLENUM WATER DEFLECTOR REPLACEMENT .
1	Plenum Water Deflector Side Support Fastener
2	Plenum Water Deflector Side Support Retainer Procedure  Use a BO-49552  plug lifter to aid in the removal of the plenum water deflector side support. Special Tools  BO-49552  Plug Lifter For equivalent regional tools, refer to SPECIAL TOOLS .
3	Plenum Water Deflector Side Support
