Video Display Replacement

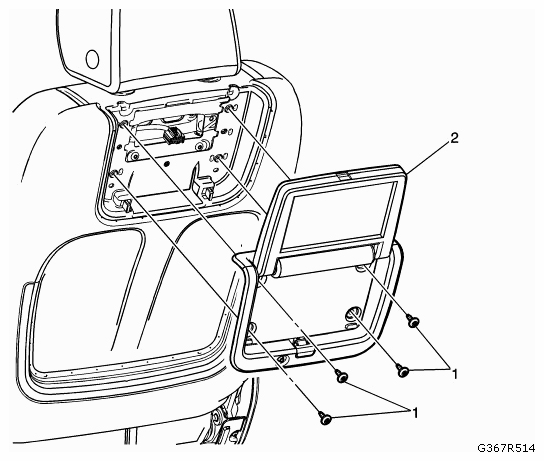

Fig 1: Identifying Video Display Assembly And Fastener
G09435315Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
1 Video Display Fastener (Qty: 4)
See FASTENER CAUTION .
Tighten
9.5 Nm (84 lb in)
2 Video Display Assembly
Procedure
Disconnect the electrical connectors.
