Radio Replacement

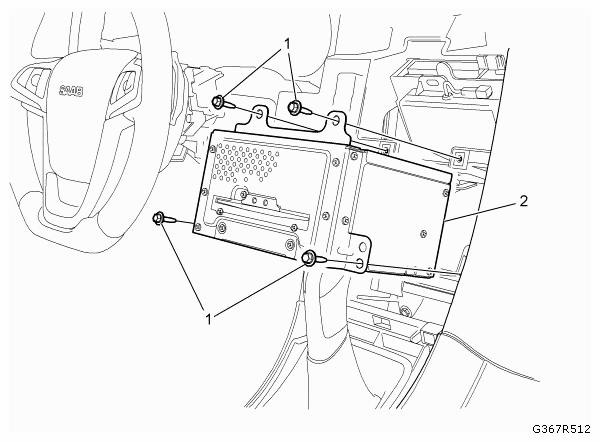

Fig 1: Identifying Radio And Fastener

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure Disconnect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION . Remove the Instrument panel upper trim panel. Refer to INSTRUMENT PANEL UPPER TRIM PANEL REPLACEMENT Remove the driver information display UDT, if installed. See DRIVER INFORMATION DISPLAY REPLACEMENT (UAG/UFD) or DRIVER INFORMATION DISPLAY REPLACEMENT (UDT) .
1	Radio Fastener (Qty: 4) See FASTENER CAUTION . Tighten 2.5 Nm (22 lb in)
2	Radio Procedure Disconnect the electrical connectors. After repairs, refer to CONTROL MODULE REFERENCES for programming and set up information.
