Rear Object Sensor Replacement

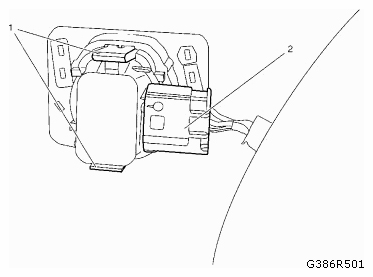

Fig 1: Identifying Rear Object Sensor Electrical Connector
G09437176Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
Preliminary Procedure
Remove the rear bumper fascia. Refer to REAR BUMPER FASCIA REPLACEMENT .
1 Rear Object Sensor Retainer (Qty: 2)
Procedure
  1. Disconnect the rear object sensor electrical connector.
  2. Release the locking retainer from the rear object sensor support.
2 Rear Object Sensor
