Deployment Outside Vehicle - Steering Wheel Module, Instrument Panel Module, and Roof Rail Module

Deploy the inflator module outside of the vehicle when the vehicle will be returned to service. Situations that require deployment outside of the vehicle include the following:

• Using the SIR diagnostics, you determine that the inflator module is malfunctioning.
• The inflator module is cosmetically damaged, scratched, or ripped.
• The inflator module pigtail is damaged.
• The inflator module connector is damaged.
• The inflator module connector terminals are damaged.

Deployment and disposal of a malfunctioning inflator module is subject to any required retention period.

Refer to SIR INFLATOR MODULE DISPOSAL WARNING .

1. Turn OFF the ignition.
2. Refer to SIR INFLATOR MODULE HANDLING AND STORAGE WARNING .

   Remove the inflator module.

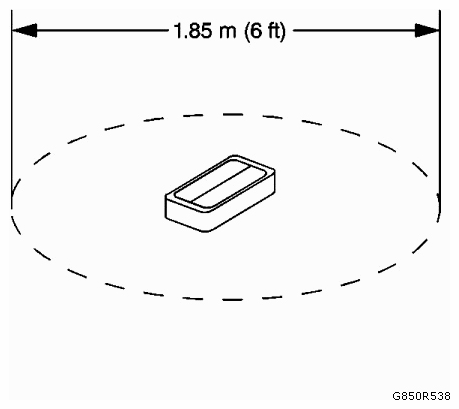

3. Clear a space on the ground about 1.85 m (6 ft) in diameter for deployment of the inflator module or deployment fixture. If possible, use a paved, outdoor location free of activity. Otherwise, use a space free of activity on the shop floor. Ensure you have sufficient ventilation.
   Fig 1: Identifying Space For Deployment Fixture

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
4. Clear the area of loose or flammable objects.
5. NOTE: Dual stage deployments are only used in steering wheel and instrument panel air bag modules. If stage 1 was used to deploy a dual stage inflator module, stage 2 may still be active. If disposal of a dual stage module is required, both deployment loops must be energized to deploy the air bag.

   If you are deploying a steering wheel inflator module, place the inflator module in the center of the space with the vinyl trim cover facing up and away from the surface.

6. When deploying an instrument panel air bag module, perform the following instructions:

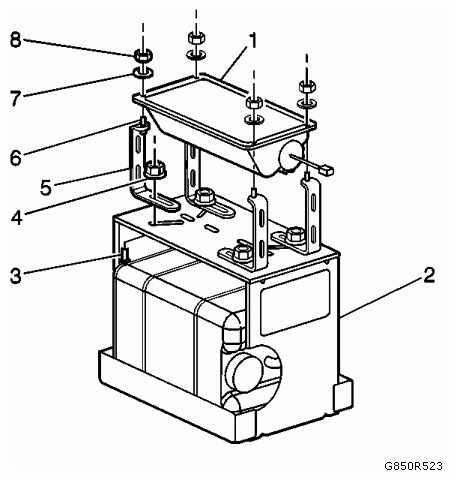

   Fig 2: Identifying Instrument Panel Air Bag Module Assembly

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
   1. 6.1. Place the EL-39401-B  fixture in the center of the cleared area.
   2. 6.2. Fill the deployment fixture with water or sand.
   3. 6.3. Using the proper nuts and bolts, mount the instrument panel air bag module (1) to the deployment fixture (2), with the vinyl trim facing up.
   4. 6.4. Securely tighten all fasteners that hold the instrument panel air bag module (1) to the deployment fixture (2).
7. When deploying a roof rail module, perform the following instructions:

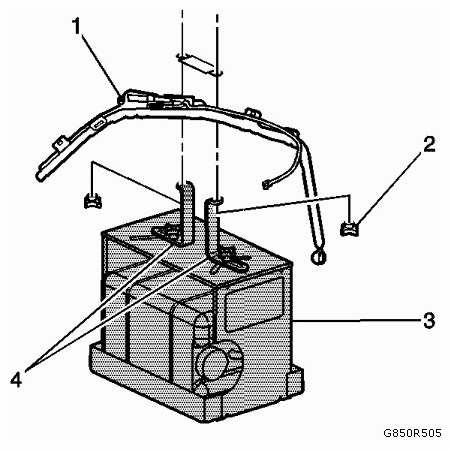

   Fig 3: Adjusting Fixture Arms To Deployment Fixture

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
   1. 7.1. Place the EL-39401-B  fixture (3) in the center of the cleared area.
   2. 7.2. Fill the deployment fixture with water or sand to provide sufficient stabilization of fixture during deployment.
   3. 7.3. Adjust and secure the fixture arms (4) to the deployment fixture (3), using the proper nuts and bolts.
   4. 7.4. Attach the roof rail module in the deployment fixture and securely tighten all fasteners.
8. Inspect the EL-38826  harness and the appropriate pigtail adapter (2) for damage. Replace as necessary.

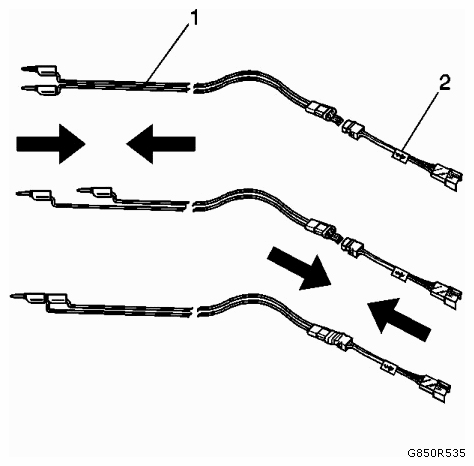

   Fig 4: Identifying Appropriate Pigtail Adapter And SIR Deployment Harness Leads

   Courtesy of SAAB-SCANIA OF AMERICA, INC.

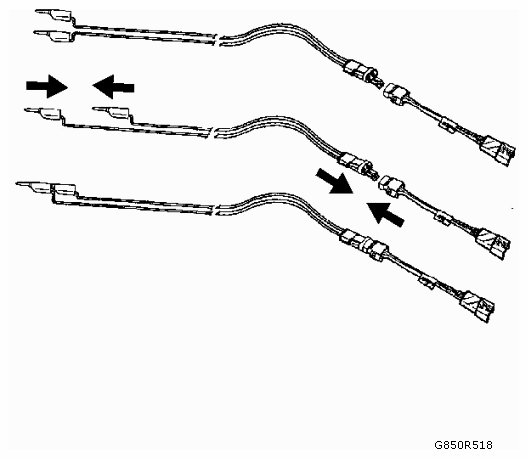

9. Short the 2 SIR deployment harness leads (1) together using one banana plug seated into the other.
10. Connect the appropriate pigtail adapter (2) to the SIR deployment harness (1).
11. Extend the SIR deployment harness and adapter to the full length from the deployment fixture or area.
    Fig 5: Identifying SIR Deployment Harness Full Length

    Courtesy of SAAB-SCANIA OF AMERICA, INC.
12. NOTE: On a dual stage inflator module, both connectors must be attached to the deployment harness adapter. This will ensure that both stage 1 and stage 2 of the deployment loops are energized, regardless of the deployment state.

    Connect the inflator module (1) to the adapter (2) on the SIR deployment harness (3).

    Fig 6: Identifying Inflator Module, Adapter And SIR Deployment Harness

    Courtesy of SAAB-SCANIA OF AMERICA, INC.
13. NOTE:

    • The rapid expansion of gas involved with deploying an inflator module is very loud. Notify all the people in the immediate area that you intend to deploy the inflator module.
    • When the inflator module deploys, the deployment fixture may jump about 30 cm (1 ft) vertically. This is a normal reaction of the inflator module due to the force of the rapid expansion of gas inside the inflator module.
    • If you are deploying a dual stage inflator module with stage 1 already deployed, the fixture may not move and the noise may have been reduced.

    Clear the area of people.

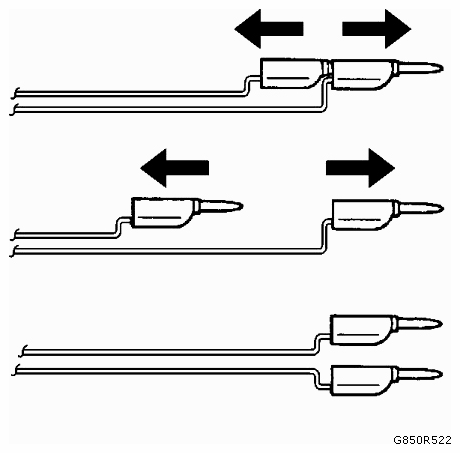

14. Separate the 2 banana plugs on the SIR deployment harness that were shorted together earlier in the procedure.
    Fig 7: Separating Banana Plugs On SIR Deployment Harness

    Courtesy of SAAB-SCANIA OF AMERICA, INC.

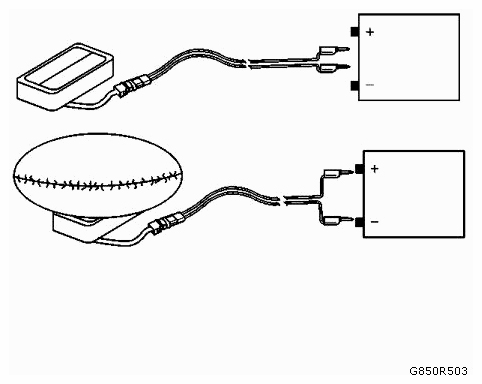

15. Place a 12 V minimum/2A minimum power source, such as a vehicle battery, near the shorted end of the harness.
    Fig 8: Using 12 V Minimum/2A Minimum Power SourceTo Deploy Airbag

    Courtesy of SAAB-SCANIA OF AMERICA, INC.
16. Connect the SIR deployment harness wires to the power source. Deployment of the Inflator module will occur when contact is made.
17. Disconnect the SIR deployment harness from the power source after the inflator module deploys.
    Fig 9: Connecting SIR Deployment Harness Wires To Power Source

    Courtesy of SAAB-SCANIA OF AMERICA, INC.
18. If the inflator module did not deploy, disconnect the adapter and discontinue the procedure and contact the Technical Assistance Group.

    If deployment was successful, proceed to the following steps.

19. Refer to SIR DEPLOYED INFLATOR MODULES ARE HOT WARNING .

    Seat one banana plug into the other in order to short the deployment harness leads.

20. Put on a pair of shop gloves.
21. Disconnect the pigtail adapter from the inflator module as soon as possible.
22. Inspect the pigtail adapter and the SIR deployment harness. Replace as necessary.
23. Dispose of the deployed inflator module through normal refuse channels.
24. Wash your hands with a mild soap.
