Home >> Saab >> 2010 >> 9-5 >> Repair and Diagnosis (Single Page) >> Quick Lookups >> Wiring Diagrams >> OEM Connector End Views (2 Of 2) >> Connector End Views >> K9 Body Control Module Connector End View X4 >> Notes

K9 Body Control Module Connector End View X4: Notes

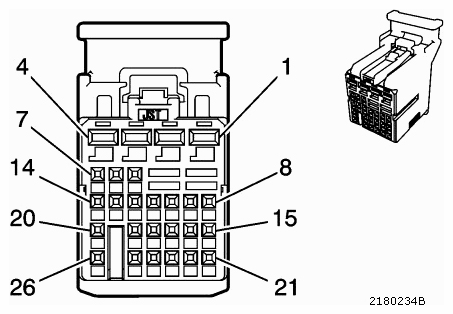

Fig 1: K9 Body Control Module Connector End View X4

G09436554

Courtesy of SAAB-SCANIA OF AMERICA, INC.
